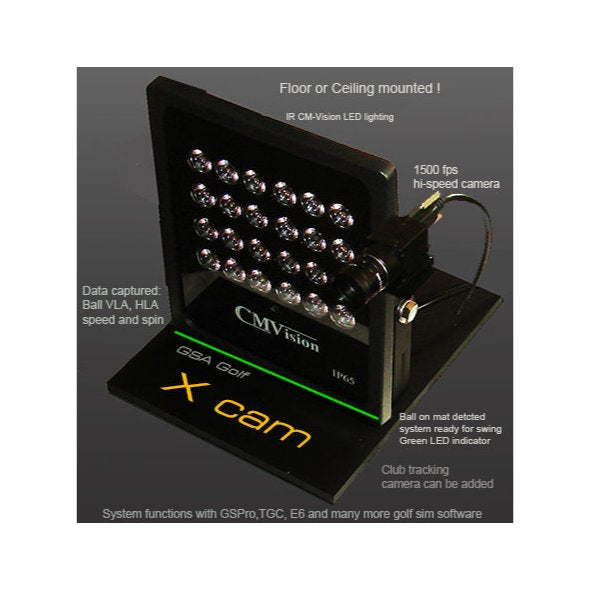

GSA Golf X Cam device with LED lights and camera on a gray background

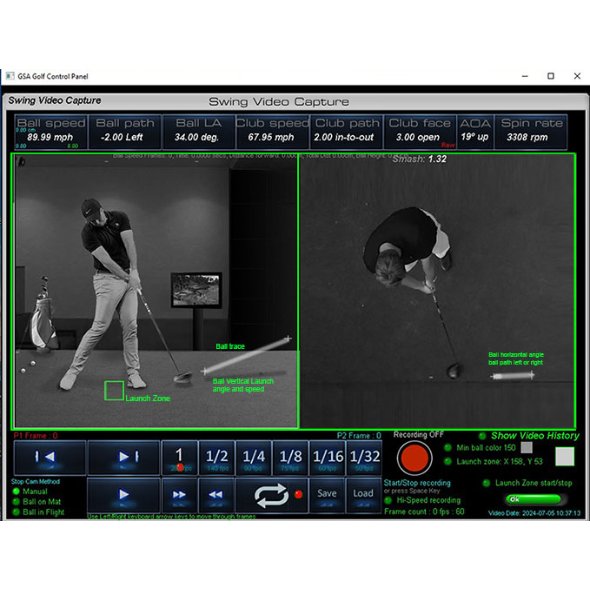

Golf swing analysis software interface with player and camera view

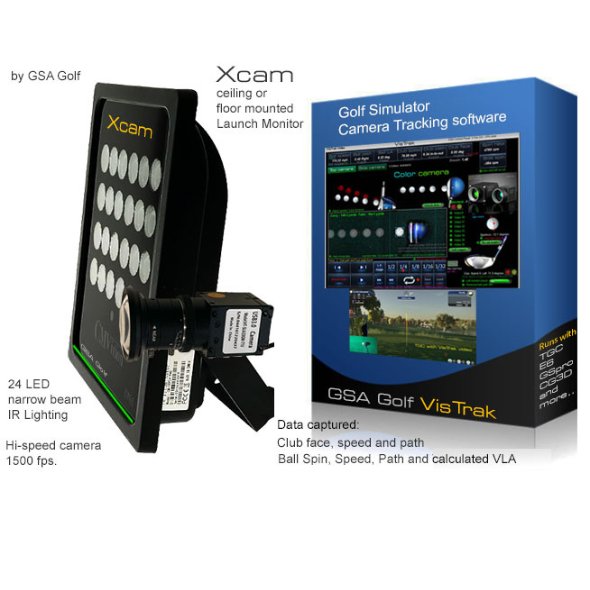

GSA Golf Xcam golf simulator camera and software packaging on a white background

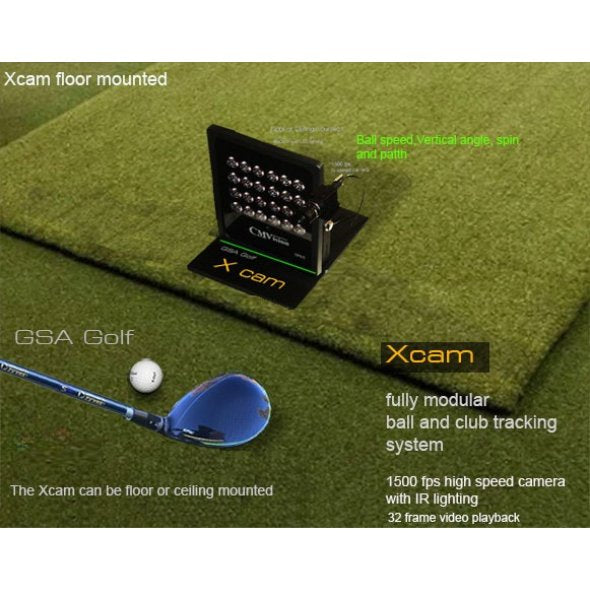

GSA Golf Xcam golf ball and club tracking system on a green mat

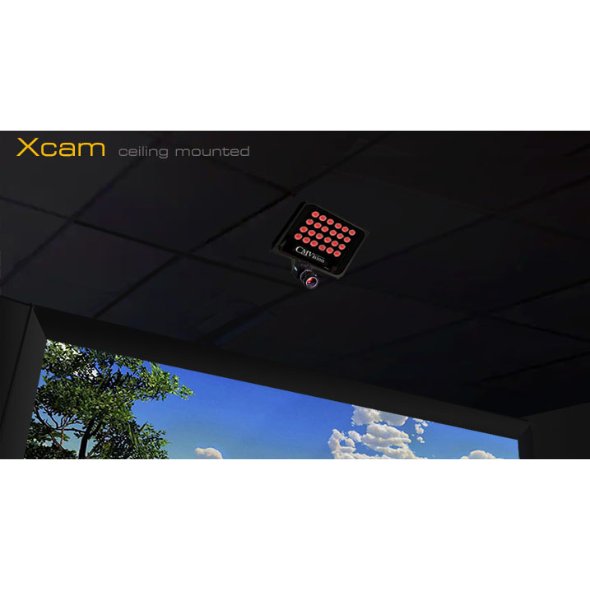

Ceiling-mounted Xcam camera with golf simulator screen in background

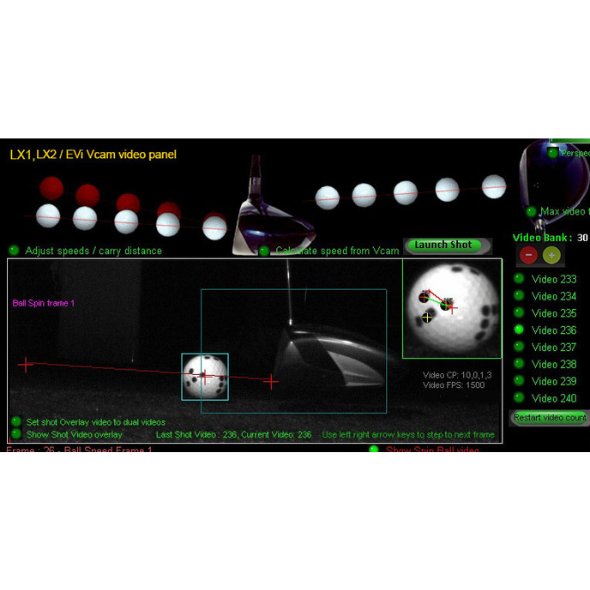

Golf simulator shot analysis video feed and interface on a screen
GSA Golf

GSA Golf VisTrak Xcam

Sale price$1,299.00

RETURN AND REFUND POLICY

The GSA Golf VisTrak Xcam is a modular hi-speed camera unit that can be configured in six different launch monitor setups - ceiling mounted, floor mounted, or combined - making it the most flexible camera in the VisTrak range.

Each Xcam includes 24 narrow-beam IR LED lights, interchangeable lenses, a 40ft USB3 cable, and both ceiling and floor mounting hardware. Use one Xcam as an Eagle-equivalent ceiling unit or an LX1-equivalent floor unit. Use two together to build a full SCX (dual ceiling), EVi (ceiling plus floor), or LX2 (dual floor) equivalent system.

The Xcam is a flexible building block for golfers who want to start with one camera and add a second later, or who want one device that can reconfigure for different setups. It is not a plug-and-play device - a USB3-connected Windows PC is required.

Features

  • Six configurable setups - Floor mounted (LX1/Vcam), ceiling mounted (Eagle), dual ceiling (SCX), split ceiling and floor (EVi), dual floor (LX2), or swing capture mode
  • 1500fps hi-speed camera - Captures ball and club data on every shot
  • 24-LED IR narrow beam lighting - Integrated LED array for precise ball and club detection
  • Interchangeable lenses - Swap lenses to match different room depths and configurations
  • 40ft USB3 cable included - Long cable gives full flexibility for ceiling and floor positioning
  • Ceiling and floor mounts included - Hardware for both ceiling and floor installation included in the box
  • Modular - pairs with a second Xcam - Add a second Xcam to unlock dual-camera configurations with full measured VLA and spin
  • Compatible with all major simulator software - GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, and many more
  • Hand-built in the USA - Assembled and calibrated by GSA Golf in Naples, Florida

In The Box

  • Xcam hi-speed infrared camera
  • 24-LED IR narrow beam light array
  • Interchangeable lens set
  • 40ft USB3 cable
  • Ceiling mount hardware
  • Floor mount hardware

Specifications

Camera type Single hi-speed infrared, 1500fps
Mount type Ceiling or floor mounted (hardware for both included)
Configurations 6 - LX1 floor, Eagle ceiling, SCX dual-ceiling, EVi ceiling+floor, LX2 dual-floor, swing capture
Lighting 24-LED IR narrow beam array (included)
Cable length 40ft USB3
Lenses Interchangeable (included)
Compatible software GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, and others
Minimum PC Intel i5 or above, Nvidia GTX 1070 or equivalent, Windows 10 or 11, USB 3.1
Warranty 1 year on cameras
Lead time 7-10 days from order
Origin Hand-built in Naples, Florida, USA

Manuals & Guides

Installation guide and setup documentation coming soon. For support, email support@simulatorshq.com
GSA Golf X Cam device with LED lights and camera on a gray background
GSA Golf VisTrak Xcam Sale price$1,299.00

Fast & Free shipping

Our team is committed to getting your products in your hands as soon as possible. Once placed, we fulfill your order within 48 hours. Orders to the lower 48 may qualify for free shipping. Some products are excluded from Free Shipping due to freight charges. See checkout for details.

Lowest price match guarantee

We offer the lowest prices guaranteed. If you find a lower offer for the same in-stocked product - we will match or beat that price.

Speak to a live agent

Our expert team is hear to help you with all your questions across our full range of products. Call, email or chat with our dedicated staff.

Description

The GSA Golf VisTrak Xcam is a modular hi-speed camera unit that can be configured in six different launch monitor setups - ceiling mounted, floor mounted, or combined - making it the most flexible camera in the VisTrak range.

Each Xcam includes 24 narrow-beam IR LED lights, interchangeable lenses, a 40ft USB3 cable, and both ceiling and floor mounting hardware. Use one Xcam as an Eagle-equivalent ceiling unit or an LX1-equivalent floor unit. Use two together to build a full SCX (dual ceiling), EVi (ceiling plus floor), or LX2 (dual floor) equivalent system.

The Xcam is a flexible building block for golfers who want to start with one camera and add a second later, or who want one device that can reconfigure for different setups. It is not a plug-and-play device - a USB3-connected Windows PC is required.

Features
  • Six configurable setups - Floor mounted (LX1/Vcam), ceiling mounted (Eagle), dual ceiling (SCX), split ceiling and floor (EVi), dual floor (LX2), or swing capture mode
  • 1500fps hi-speed camera - Captures ball and club data on every shot
  • 24-LED IR narrow beam lighting - Integrated LED array for precise ball and club detection
  • Interchangeable lenses - Swap lenses to match different room depths and configurations
  • 40ft USB3 cable included - Long cable gives full flexibility for ceiling and floor positioning
  • Ceiling and floor mounts included - Hardware for both ceiling and floor installation included in the box
  • Modular - pairs with a second Xcam - Add a second Xcam to unlock dual-camera configurations with full measured VLA and spin
  • Compatible with all major simulator software - GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, and many more
  • Hand-built in the USA - Assembled and calibrated by GSA Golf in Naples, Florida
In The Box
  • Xcam hi-speed infrared camera
  • 24-LED IR narrow beam light array
  • Interchangeable lens set
  • 40ft USB3 cable
  • Ceiling mount hardware
  • Floor mount hardware
Specifications
Camera type Single hi-speed infrared, 1500fps
Mount type Ceiling or floor mounted (hardware for both included)
Configurations 6 - LX1 floor, Eagle ceiling, SCX dual-ceiling, EVi ceiling+floor, LX2 dual-floor, swing capture
Lighting 24-LED IR narrow beam array (included)
Cable length 40ft USB3
Lenses Interchangeable (included)
Compatible software GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, and others
Minimum PC Intel i5 or above, Nvidia GTX 1070 or equivalent, Windows 10 or 11, USB 3.1
Warranty 1 year on cameras
Lead time 7-10 days from order
Origin Hand-built in Naples, Florida, USA
Manuals & Guides

Installation guide and setup documentation coming soon. For support, email support@simulatorshq.com
