The GSA Golf VisTrak SCX Pro is a ceiling-mounted stereo camera launch monitor that delivers full ball and club tracking data for a fraction of what comparable overhead camera systems cost.
Unlike radar-based launch monitors where ball and club data cannot be independently verified, every SCX Pro shot is backed by hi-speed video playback you can review frame by frame. You can see ball path, launch angle, club face angle and spin with your own eyes.
At $3,399 the SCX Pro delivers the same or better shot data than competing ceiling-mounted systems that sell for double and up to five times the price.
Each SCX Pro is hand-built in Florida by founder Martin Gardiner. Assembly, testing and calibration takes approximately 16 hours per unit, with a lead time of 7 to 10 days from order. Cameras are laser precision-aligned at the factory before shipping.

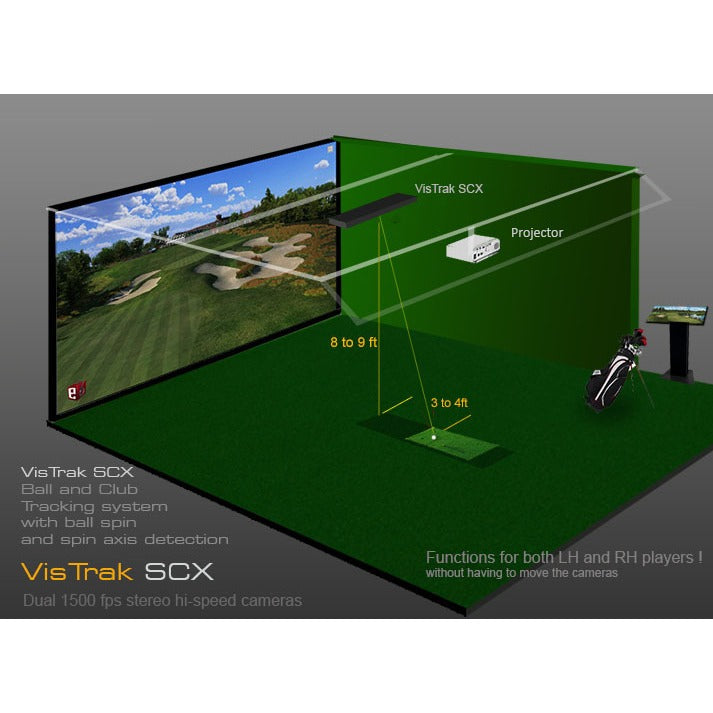

Please note: The SCX Pro is not a plug-and-play device. It requires ceiling mounting and a USB3 connection to a compatible Windows desktop PC. Most users have no problems following the installation instructions, but factor in time for first-time setup. Free email support is included, and remote access support is available.
Features

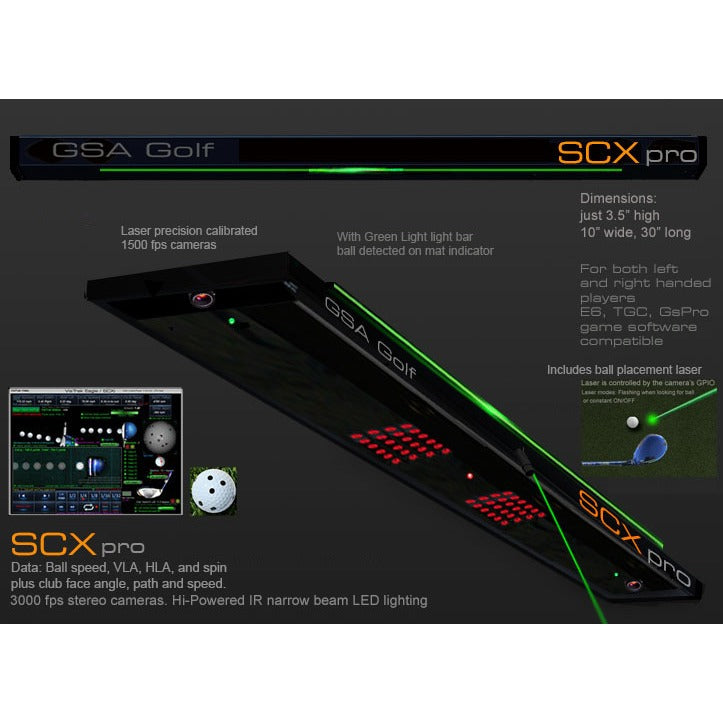

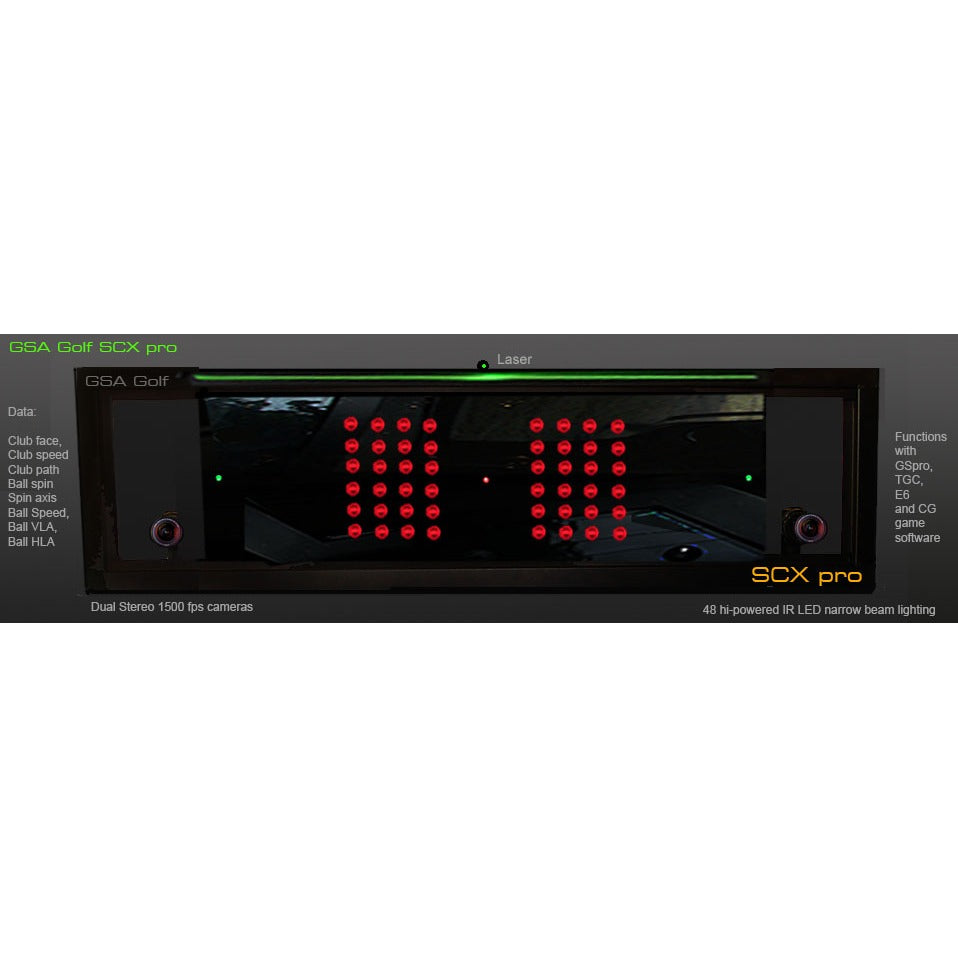

- Dual 3000fps hi-speed infrared cameras - Stereo camera pair captures ball and club data from two overhead angles simultaneously for comprehensive shot measurement
- 7-parameter shot data - Measures ball speed, horizontal launch angle (HLA), club face angle and path directly. Vertical launch angle (VLA) and ball spin measured or calculated depending on configuration

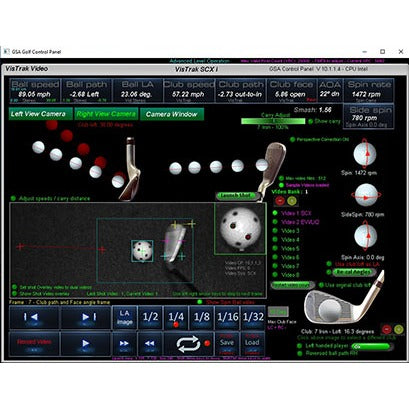

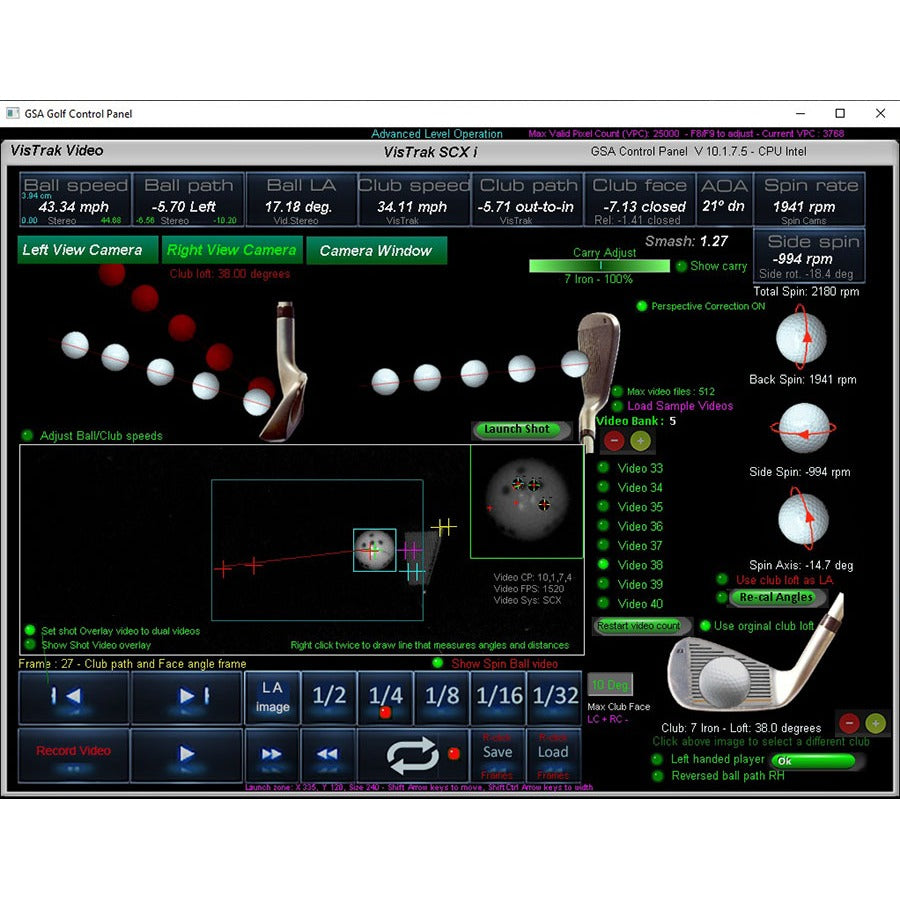

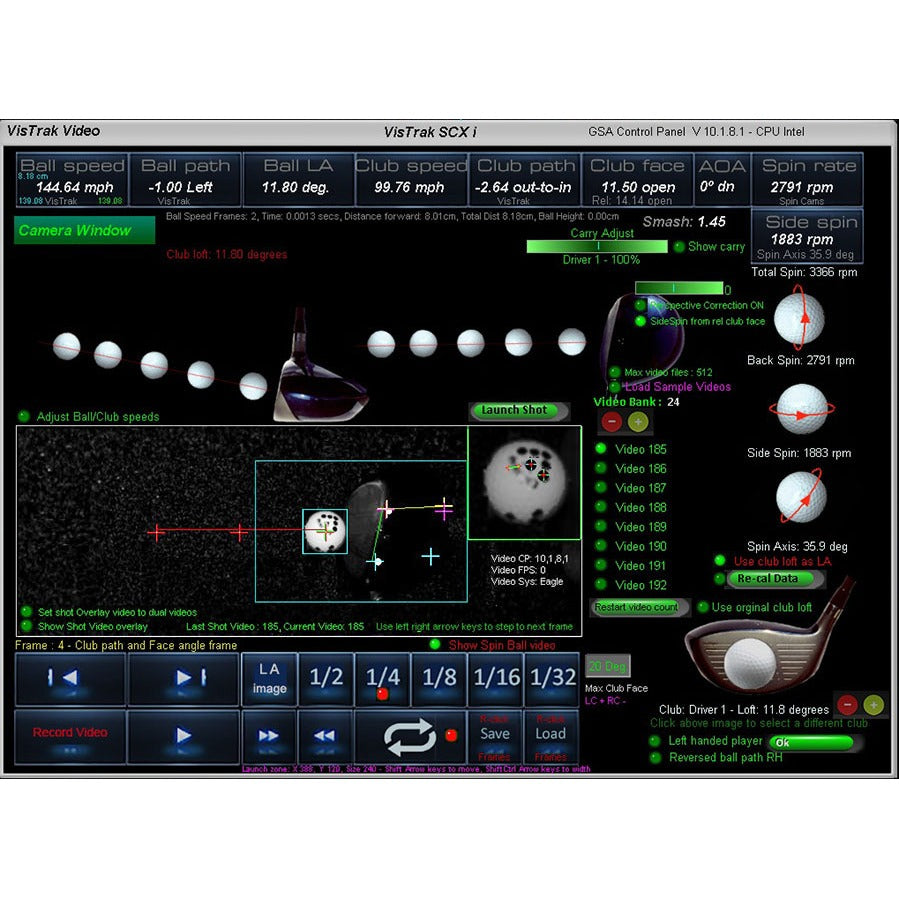

- Post-shot video replay - Full shot playback video after every shot, including a separate ball spin video showing spin direction and rate
- Laser ball placement guide - Laser indicator shows the correct ball position and automatically switches off when the ball is detected in the launch zone
- No proprietary balls required - Works with any ball that has a logo or marking. No special dots, no subscriptions, no ongoing costs
- Optional club marking strips - Sticky-back white strips supplied for irons and woods to improve club face and path detection. System functions without them
- Detects putts - Captures all putting data in addition to full swing shots

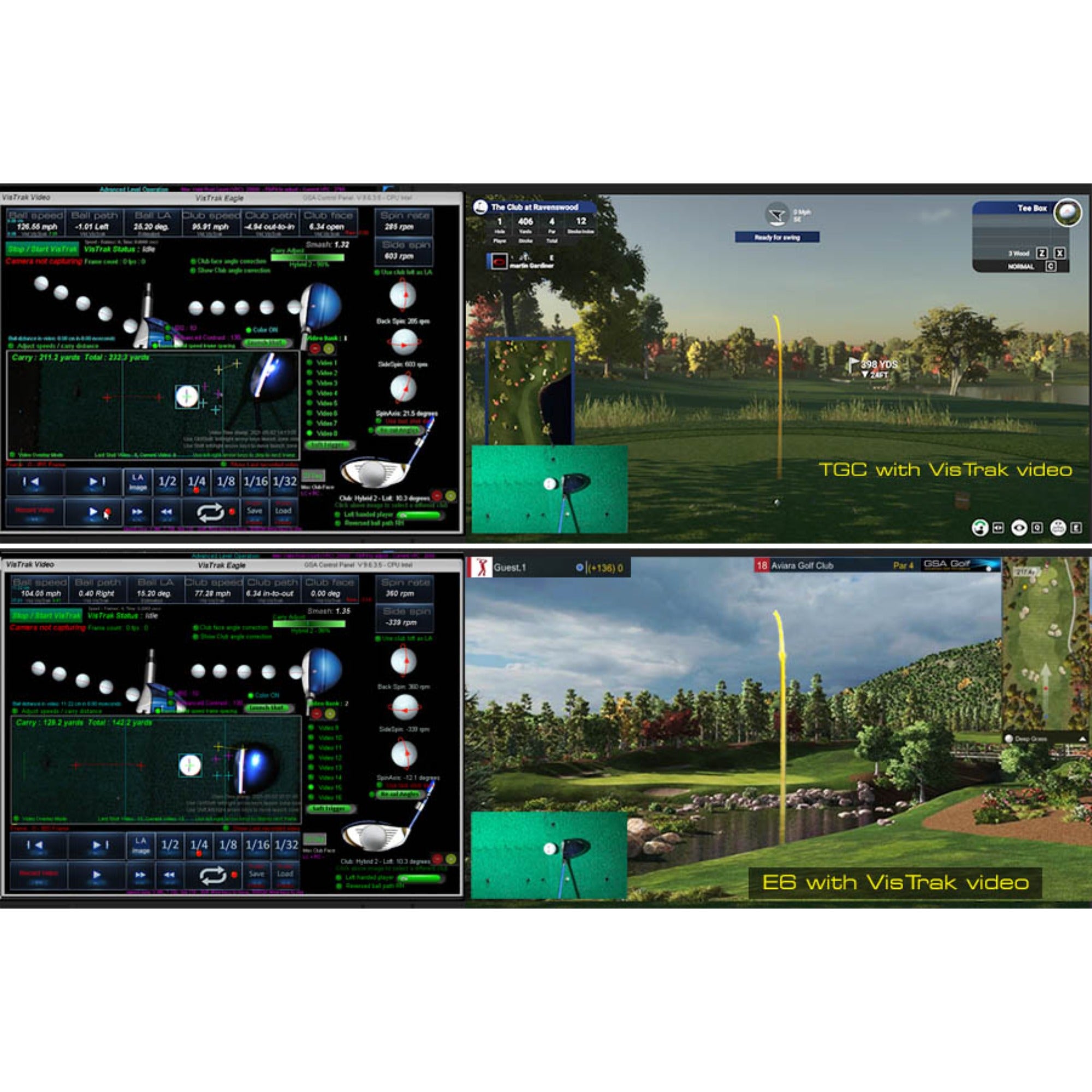

- Compatible with all major simulator software - GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, ProX

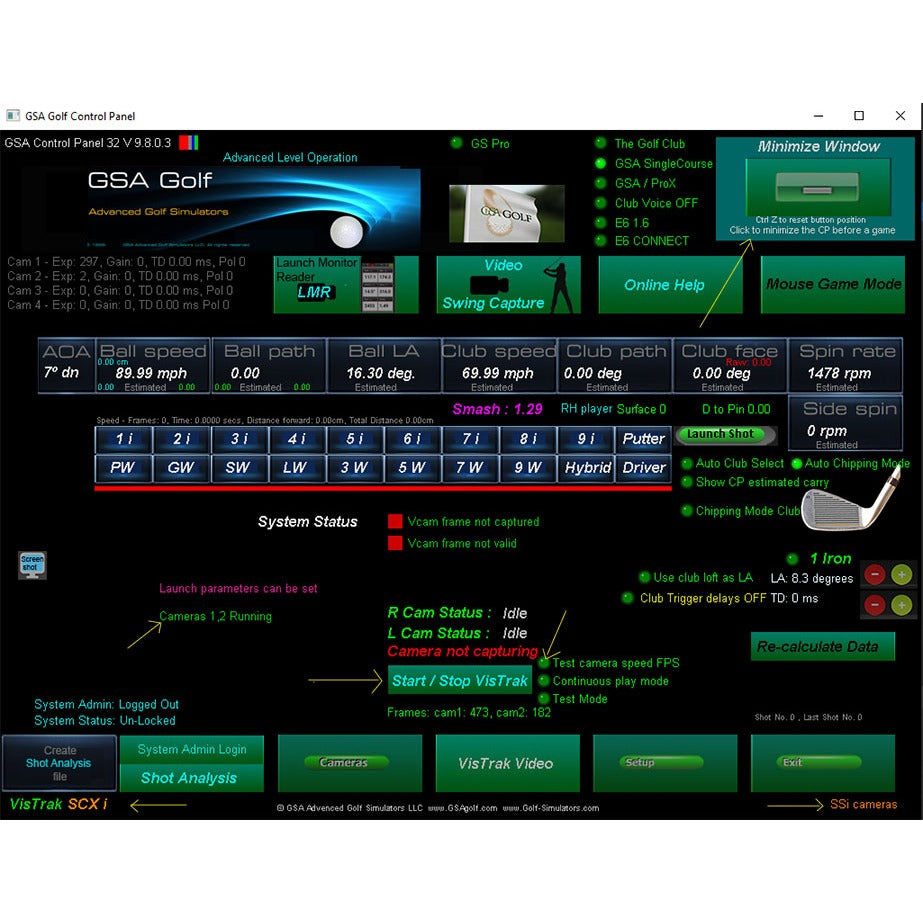

- Free 18-hole course game included - GSA Golf Control Panel software with an 18-hole playable course ships with every unit
- Modular and reconfigurable - Cameras can be remounted into different configurations including one ceiling and one floor-level position for attack angle capture
- Floor-level power switch - Power strip and 25ft extension cable included so you can switch the unit on and off without a ladder
- Hand-built in the USA - Each unit is individually built, tested and calibrated by GSA Golf in Naples, Florida
In The Box
- GSA Golf SCX Pro dual-camera system
- IR LED lighting frame
- Laser ball placement guide
- Power strip with on/off switch and 25ft extension cable
- USB3 cables with powered adapters (36ft)
- Club marking strips (sticky-back white glossy paper)
- Quick Guide Installation and Operating Manual
Specifications

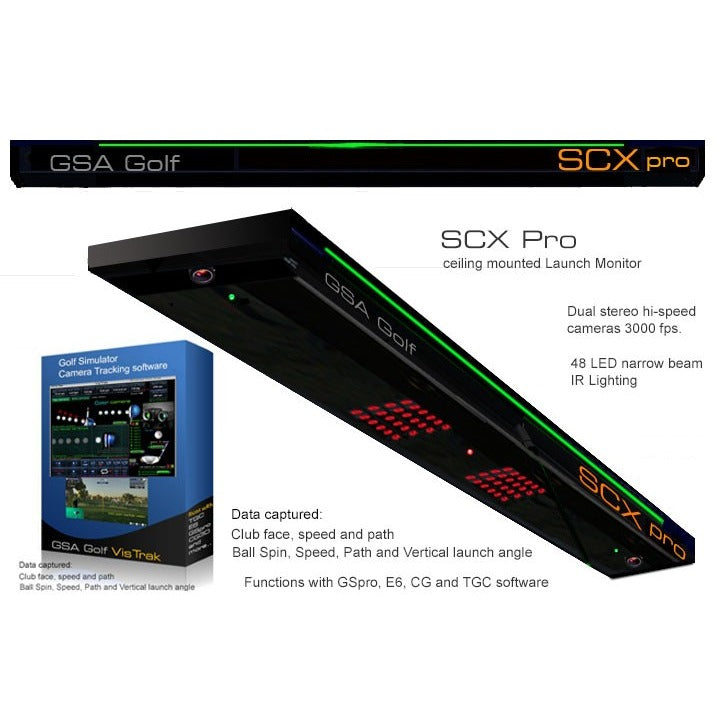

| Camera type | Dual hi-speed infrared, 3000fps each |
| Mount type | Ceiling mounted |
| Ball parameters | Ball speed, horizontal launch angle (HLA), vertical launch angle (VLA), backspin, sidespin |
| Club parameters | Club head speed, club path, club face angle |
| Lighting | Integrated IR LED frame (included) |
| Weight | Approximately 4 lbs |
| Connectivity | USB3 (USB3.1 10Gbps port required per camera - no hubs) |
| Compatible software | GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, ProX |
| Minimum PC | Intel i5 or above, Nvidia GTX 1070 or equivalent, Windows 10 or 11, USB 3.1 ports |
| Warranty | 1 year on cameras |
| Lead time | 7-10 days from order |
| Origin | Hand-built in Naples, Florida, USA |
Manuals & Guides
Installation guide and setup documentation coming soon. For support, email support@simulatorshq.com
Before purchasing one of our high-speed camera tracking systems (i.e. SCX, Eagle, EVi or LX systems) please be noted of the following:
- The systems are not plug-n-play: Systems require some setup and installation. While most have no problem following the installation instructions, some may find them a little overwhelming. We are here to help though with free email support. Remote access support is also available. We guarantee all systems will function
- Systems are not wireless: All systems require a USB3 cable connection to the PC.
- Ball has to be played inline with the center of the unit i.e. you can't play the ball offset to one or the other side of the unit
- Systems are generally not suitable for commercial use i.e. commercial indoor golf facilities and/or Pro Golf instructors. This is primarily due to the additional amount of support required for these users which we can't supply. Systems are primarily intended for private home use only. While some do use the systems for commercial use, customers should be aware that GSA Golf does not take any responsibility for any loss of business due to systems not functioning correctly. Use of the of the systems in a commercial environment is solely at the user's risk.
- Accuracy: As all measured data (ball and club speeds, VLA and spin rates etc) are user adjustable, accuracy will depend on these adjustments. However, every effort is made to ensure that the default adjustments produce results as accurate as possible.
