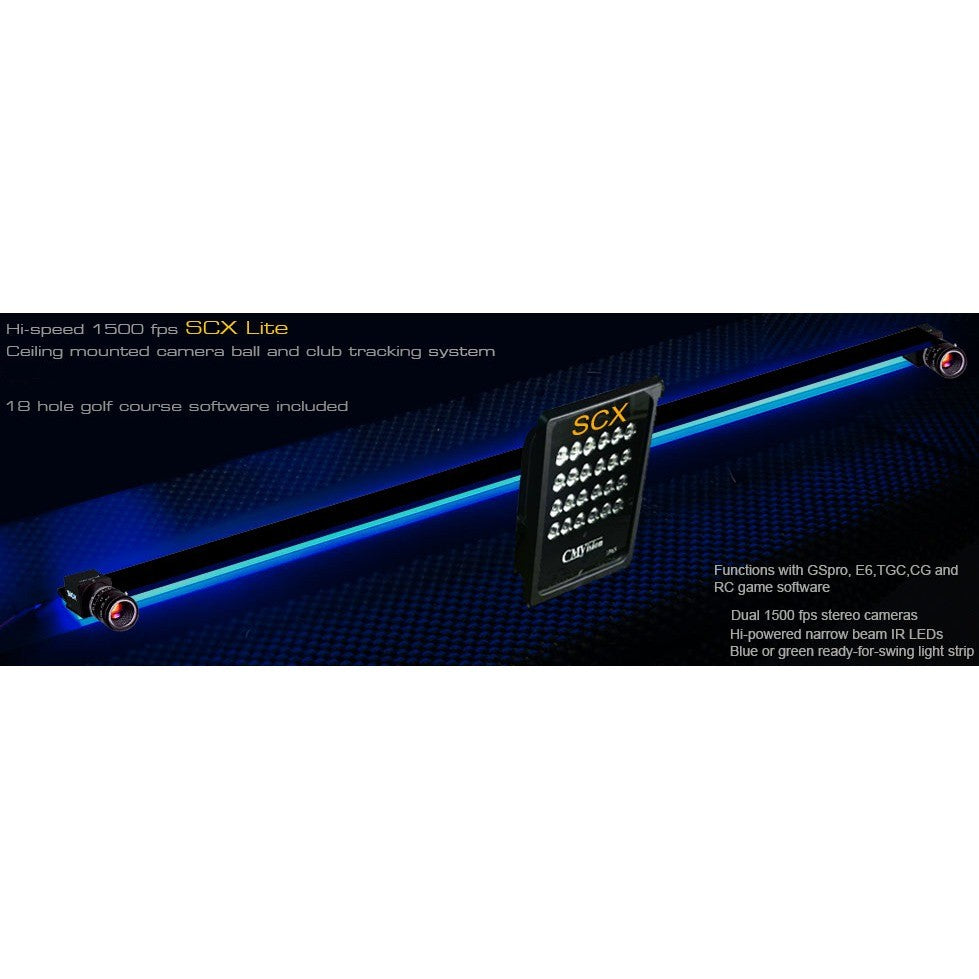

The GSA Golf SCX Lite delivers the same dual stereo camera tracking performance as the full SCX range at a lower price point by mounting the cameras on an open light bar rather than in a closed housing.
The open bar design uses the same dual hi-speed infrared camera technology as the SCX and SCX Compact. The lower price point comes from the simplified enclosure — not from any reduction in tracking capability or shot data coverage.
Like all GSA Golf VisTrak systems, the SCX Lite is hand-built in Naples, Florida, and requires ceiling mounting and a USB3-connected Windows PC.
Features
- Dual stereo hi-speed infrared cameras - Same camera pair as the full SCX, mounted on an open bar frame
- Full 7-parameter shot data - Ball speed, HLA, VLA, backspin, sidespin, club speed, club path, club face angle
- Open light bar design - Lower cost enclosure vs the SCX closed housing — no impact on tracking performance
- Post-shot video replay - Full hi-speed video playback including spin video after every shot
- No proprietary balls required - Works with any marked ball
- Compatible with all major simulator software - GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, ProX
- Hand-built in the USA - Individually assembled and calibrated by GSA Golf in Naples, Florida
Specifications
| Camera type | Dual hi-speed infrared stereo |
| Mount type | Ceiling mounted (open bar) |
| Ball parameters | Ball speed, HLA, VLA, backspin, sidespin |
| Club parameters | Club head speed, club path, club face angle |
| Compatible software | GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, ProX |
| Minimum PC | Intel i5 or above, Nvidia GTX 1070 or equivalent, Windows 10 or 11, USB 3.1 ports |
| Warranty | 1 year on cameras |
| Lead time | 7-10 days from order |
| Origin | Hand-built in Naples, Florida, USA |
Manuals & Guides
Installation guide and setup documentation coming soon. For support, email support@simulatorshq.com
Before purchasing one of our high-speed camera tracking systems (i.e. SCX, Eagle, EVi or LX systems) please be noted of the following:
- The systems are not plug-and-play: Systems require some setup and installation. While most have no problem following the installation instructions, some may find them a little overwhelming. We are here to help, though, with free email support. Remote access support is also available. We guarantee all systems will function
- Systems are not wireless: All systems require a USB3 cable connection to the PC.
- Ball has to be played in line with the center of the unit i.e. you can't play the ball offset to one or the other side of the unit
- Systems are generally not suitable for commercial use i.e. commercial indoor golf facilities and/or Pro Golf instructors. This is primarily due to the additional amount of support required for these users, which we can't supply. Systems are primarily intended for private home use only. While some do use the systems for commercial use, customers should be aware that GSA Golf does not take any responsibility for any loss of business due to systems not functioning correctly. Use of the systems in a commercial environment is solely at the user's risk.
- Accuracy: As all measured data (ball and club speeds, VLA and spin rates etc) are user adjustable, accuracy will depend on these adjustments. However, every effort is made to ensure that the default adjustments produce results as accurate as possible.
