GSA Golf EVi

The GSA Golf EVi is a dual-camera launch monitor system combining a ceiling-mounted overhead camera with a floor or side-mounted Vcam, delivering the most complete shot data in the GSA Golf VisTrak range.

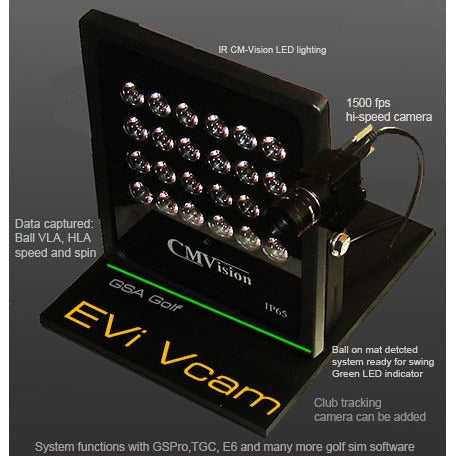

Where single-camera systems must estimate vertical launch angle from trajectory, the EVi measures VLA directly using its Vcam. Both cameras run at 1500fps and capture dual 32-frame shot playback videos from the top and side simultaneously - so you can review every swing from two angles.

The EVi is the most comprehensive system GSA Golf builds. It is the world's first and only camera tracking system with dual camera angle 32-frame shot playback videos from both the top and side view cameras after every shot.

The EVi can operate in:

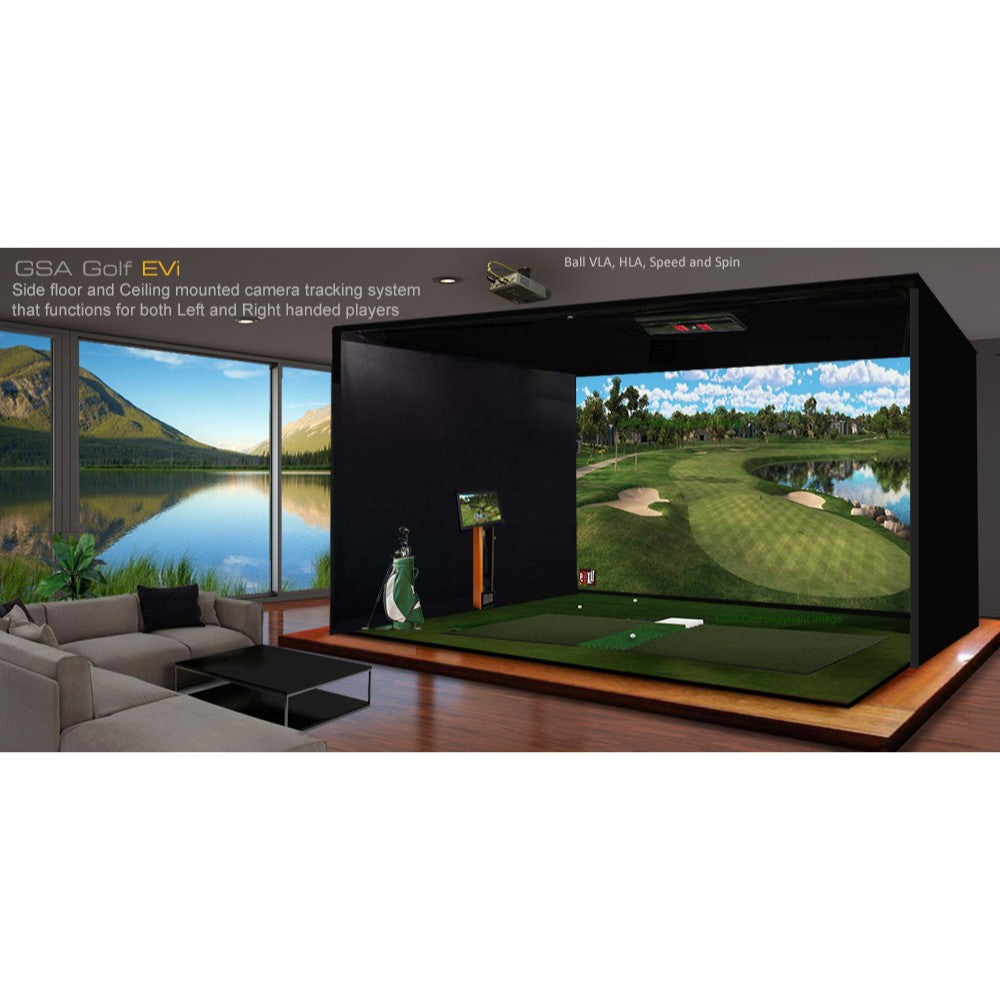

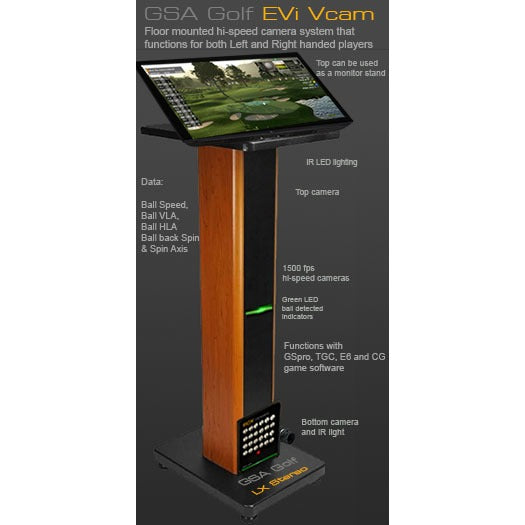

• Far Layout: The camera pair are positioned away from the ball - works for both left and right-handed players without moving the unit; and
• Near Layout: The Vcam is positioned close to the ball side - must be moved for LH/RH changeover, but delivers more precise ball spin data from the side camera.

Each unit is hand-built in Naples, Florida. Please note, GSA launch monitors are not plug-and-play devices. Each requires system setup and installation. See Manuals and Guides for more details.

Features

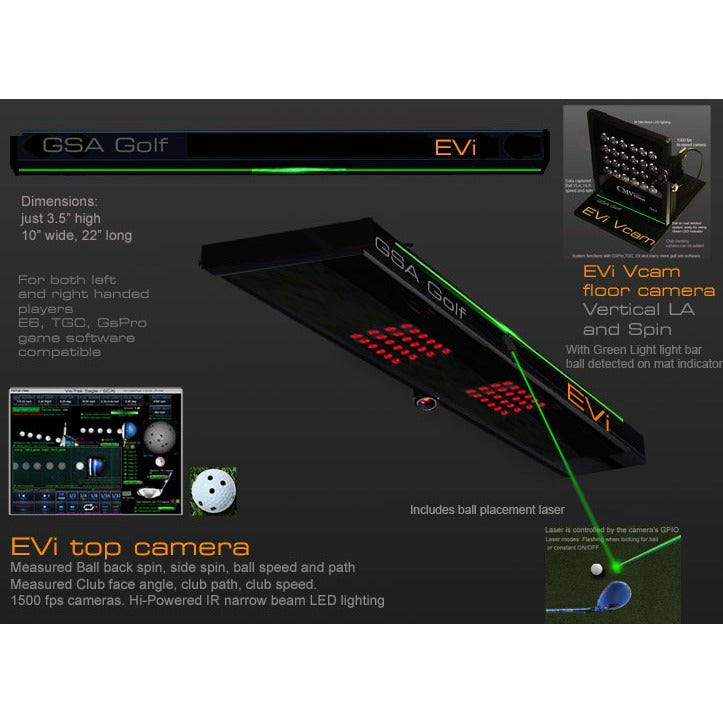

• Dual 1500fps hi-speed cameras - Ceiling-mounted top camera plus floor or side-mounted Vcam working in tandem
• Directly measured VLA - Vertical launch angle measured by the Vcam, not estimated
• Directly measured ball spin - Both backspin and sidespin captured from camera data
• Full club data - Club face angle, club path and club head speed all measured

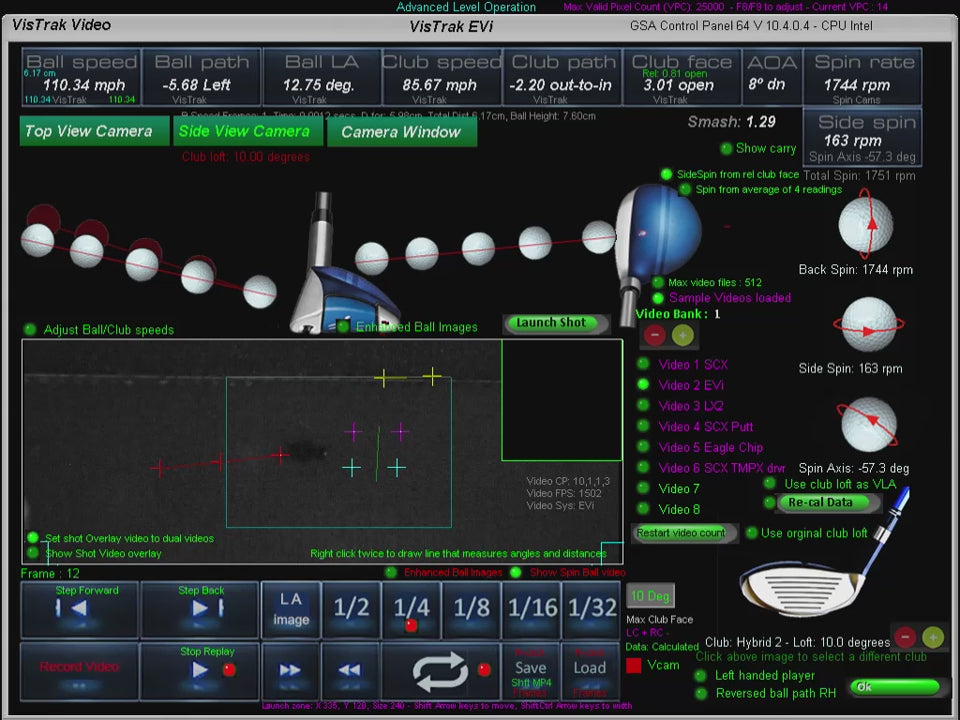

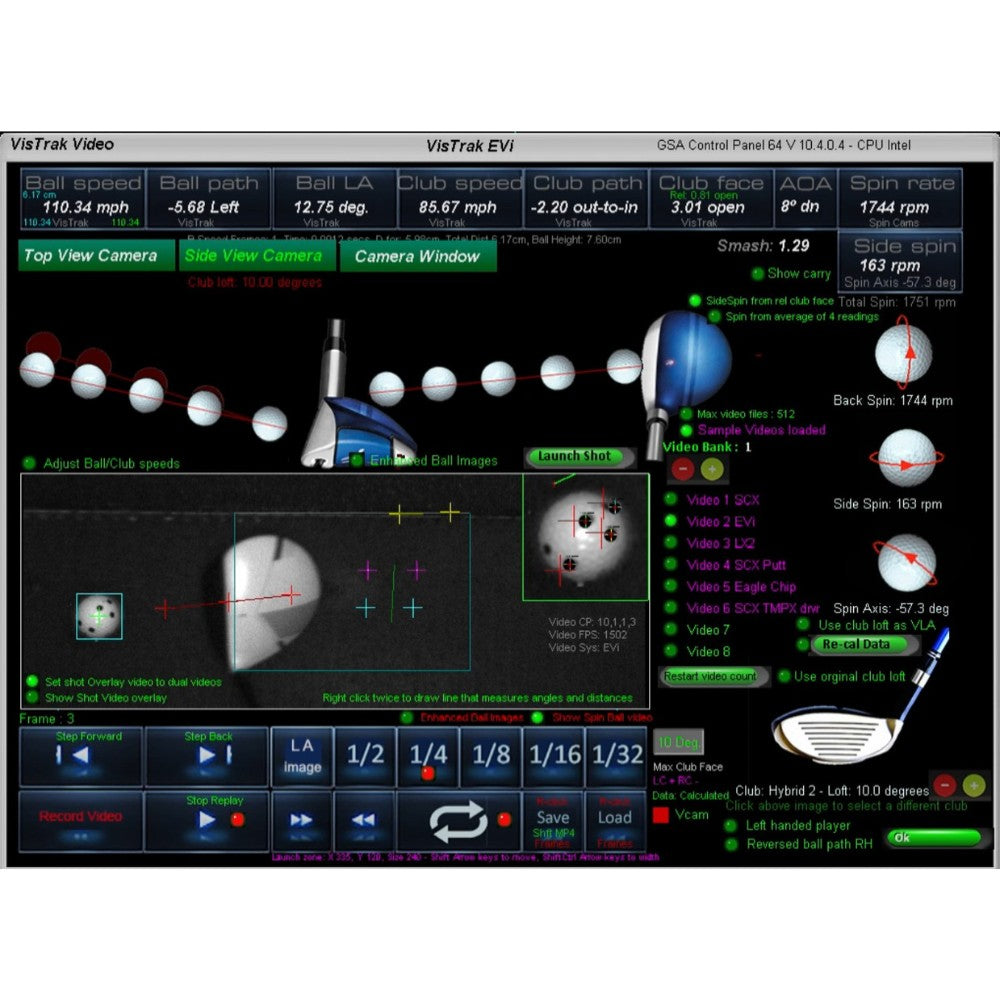

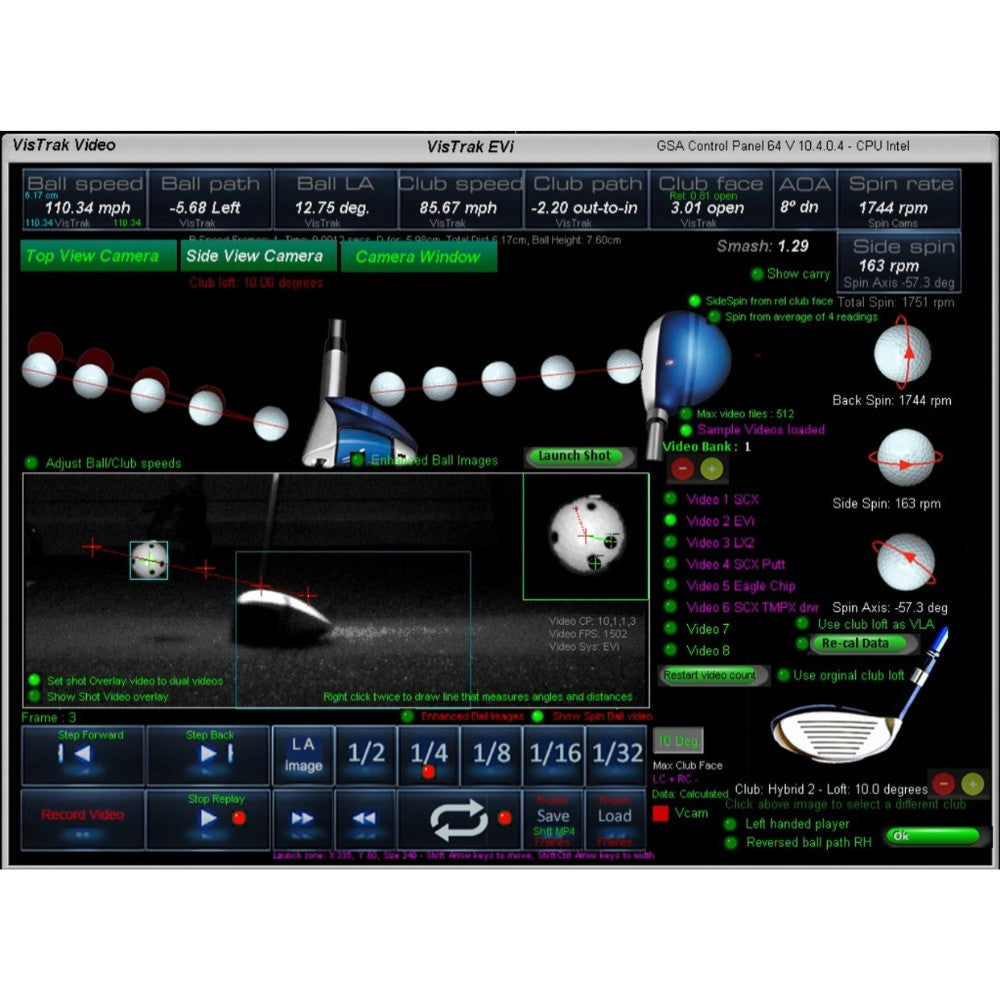

• Dual 32-frame shot playback videos - Post-shot replay from both top and side cameras simultaneously
• Far and Near layout options - Far layout works for LH and RH players without moving the unit. Near layout delivers more precise side-view spin data but requires repositioning for handedness changes
• Laser ball placement guide - Laser indicator shows correct ball position and deactivates when ball is detected on the mat
• No proprietary balls required - Works with any ball carrying a logo or marking
• Compatible with all major simulator software - GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D, ProX
• Free 18-hole course included - GSA Golf Control Panel with 18-hole playable course ships with every unit
• Hand-built in the USA - Individually assembled and calibrated by Martin Gardiner in Naples, Florida

Specifications

Manuals & Guides

Installation guide and setup documentation coming soon. For support, email support@simulatorshq.com

Before purchasing one of our high-speed camera tracking systems (i.e. SCX, Eagle, EVi or LX systems) please be noted of the following:

1. The systems are not plug-n-play: Systems require some setup and installation. While most have no problem following the installation instructions, some may find them a little overwhelming. We are here to help though with free email support. Remote access support is also available. We guarantee all systems will function
2. Systems are not wireless: All systems require a USB3 cable connection to the PC.
3. Ball has to be played inline with the center of the unit i.e. you can't play the ball offset to one or the other side of the unit
4. Systems are generally not suitable for commercial use i.e. commercial indoor golf facilities and/or Pro Golf instructors. This is primarily due to the additional amount of support required for these users which we can't supply. Systems are primarily intended for private home use only. While some do use the systems for commercial use, customers should be aware that GSA Golf does not take any responsibility for any loss of business due to systems not functioning correctly. Use of the of the systems in a commercial environment is solely at the user's risk.
5. Accuracy: As all measured data (ball and club speeds, VLA and spin rates etc) are user adjustable, accuracy will depend on these adjustments. However, every effort is made to ensure that the default adjustments produce results as accurate as possible.
