The GSA Golf Eagle is a high-speed, single-camera ceiling-mounted launch monitor that captures ball speed, ball spin, club speed, club path and club face angle from one compact overhead unit.
Already have a floor-mounted launch monitor?
Add full club tracking video playback to the floor-mounted launch monitor you already own. The Eagle camera records and replays your club through impact, giving you the post-shot footage to review and analyse that most floor-mounted monitors leave out.
Data captured:
- Ball:
- back spin
- side spin
- speed
- path
- Club
- face angle
- speed
- path
Works With Your Existing Launch Monitor
If your launch monitor sits on the floor and has no overhead club tracking camera, the Eagle fills that gap. It adds on to units such as SkyTrak, MLM2Pro, Uneekor Mini, Mevo, GC3 and Trackman, layering full post-shot club tracking video playback on top of the ball data you already get.

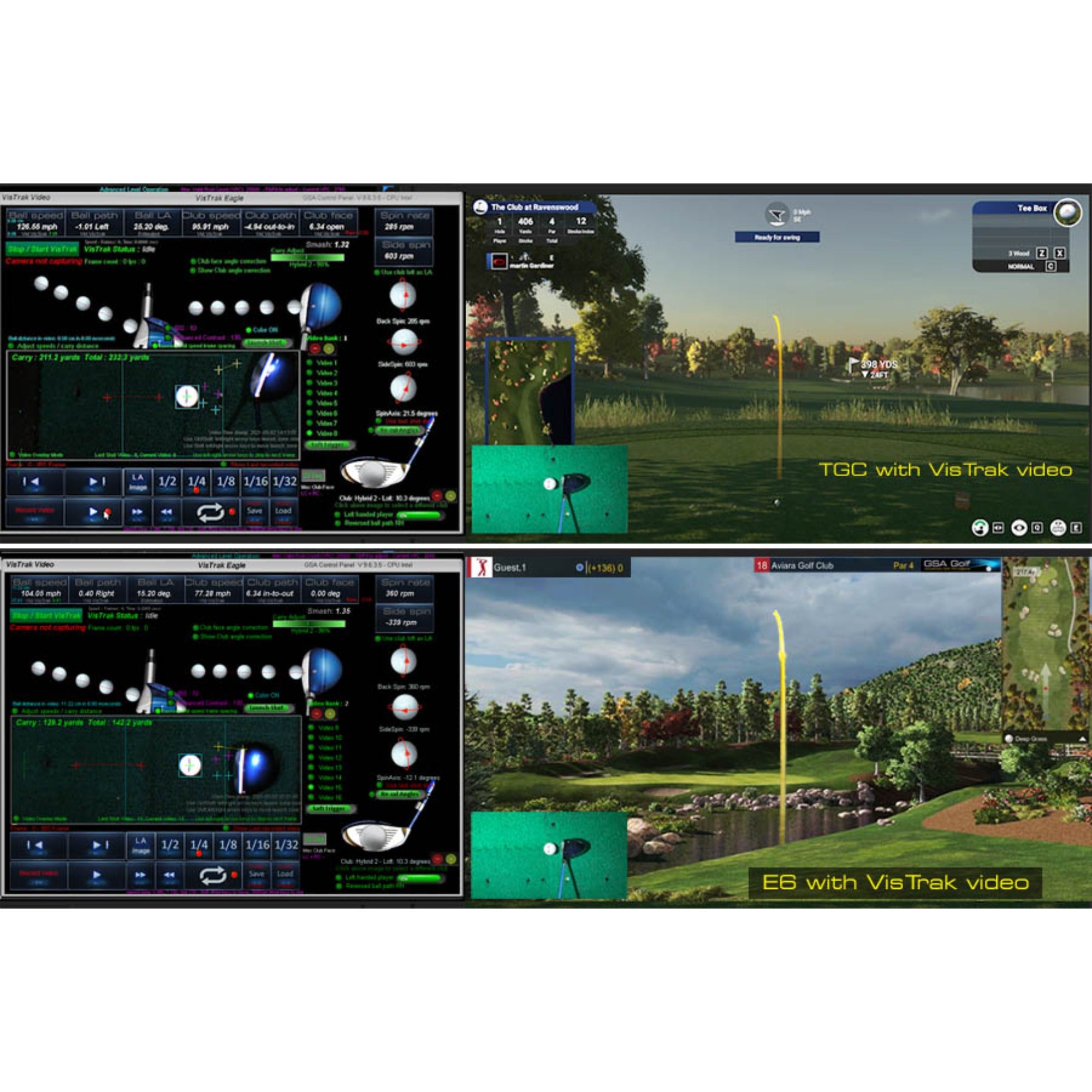

Also Works as a Standalone Tracker: The GSA Golf Eagle is not limited to a support role. Used on its own, it functions as a standalone tracking system that integrates with GSPro, E6, TGC and other golf game software, so the same camera can drive your simulator play.
At $2,199 the Eagle is the most affordable entry into the GSA Golf VisTrak ceiling camera range. It captures measured ball spin and club data - data that most radar-based monitors at this price point can only estimate - and adds full hi-speed swing video playback after every shot.
Vertical launch angle (VLA) is estimated from trajectory data rather than directly measured. For fully measured VLA, a second camera (such as the Eagle Compact added as a second unit) is required.

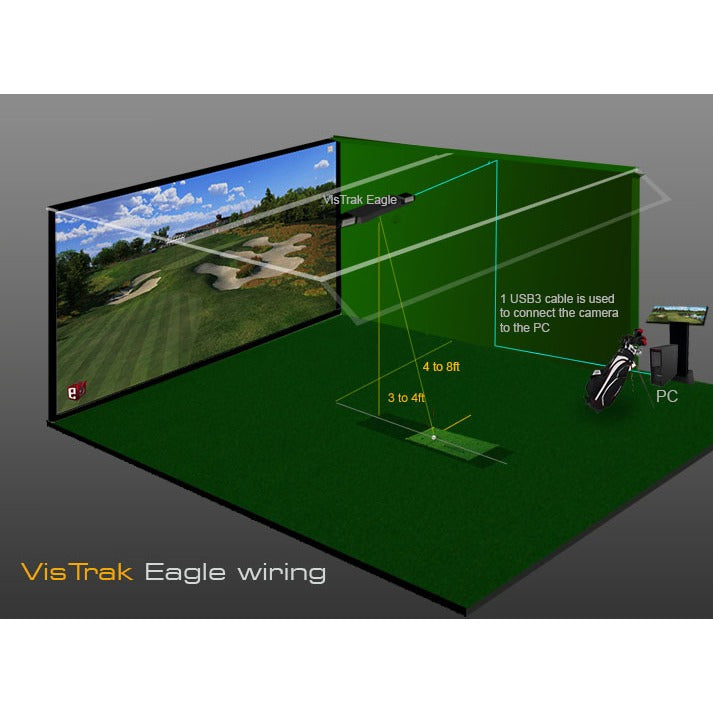

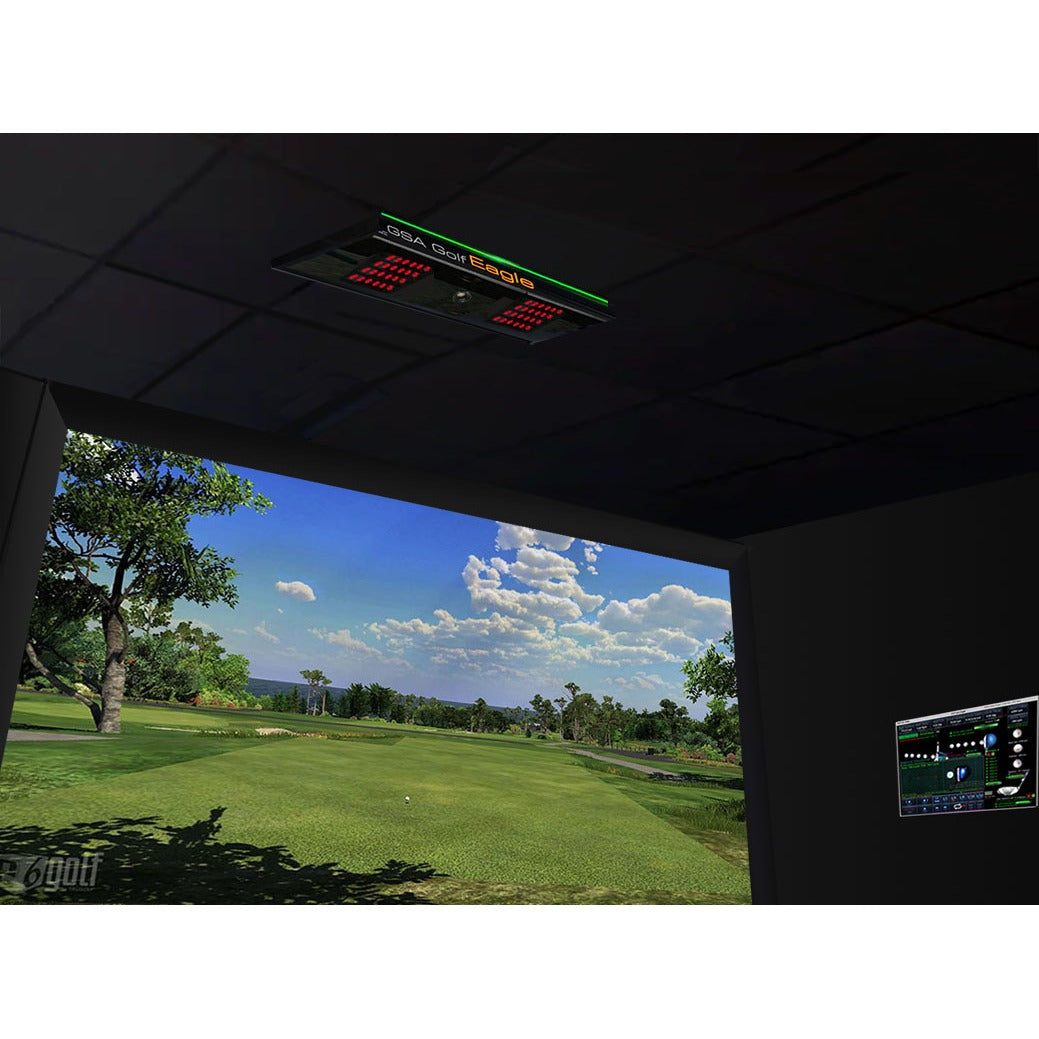

The Eagle works for both left and right-handed players without repositioning the unit. Each system is hand-built in Naples, Florida, with a 7 to 10 day lead time. It requires ceiling mounting and a USB3-connected Windows PC.
Note: The Eagle does not combine its club tracking data with your existing launch monitor. It runs as an entirely separate system, and its club tracking video is for viewing and analysis only. You get the visual feedback to study how your club moves into the ball, not a single merged data readout.
Features
- Single 1500fps hi-speed ceiling camera - Compact overhead unit captures ball and club data on every shot

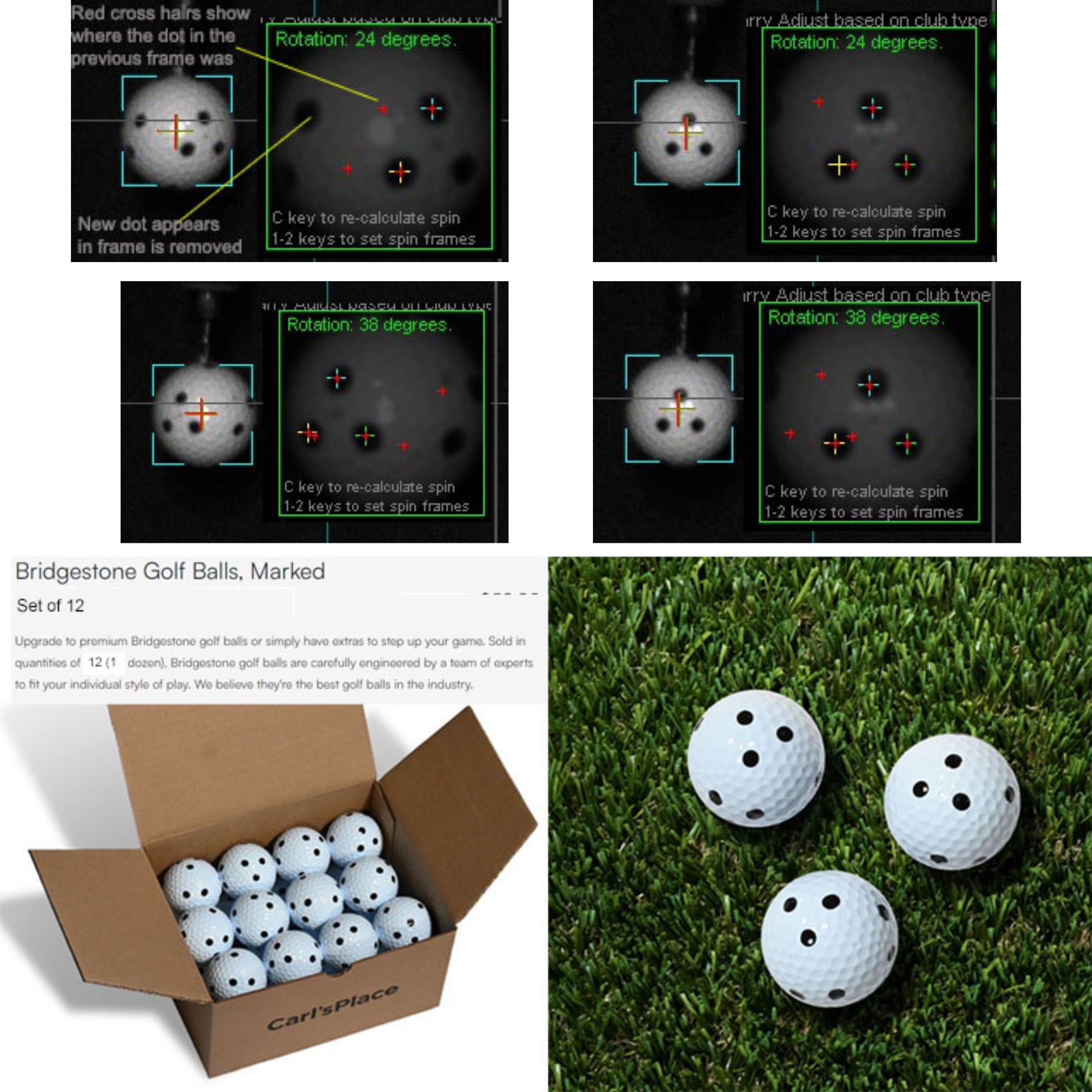

- Measured ball spin - Backspin and sidespin measured directly from camera data, not estimated
- Dual IR LED arrays - 24 IR LEDs in each of two arrays, plus 4 zoom track lights for precise ball detection
- Laser ball placement guide - Laser indicator shows correct ball position and deactivates when ball is detected

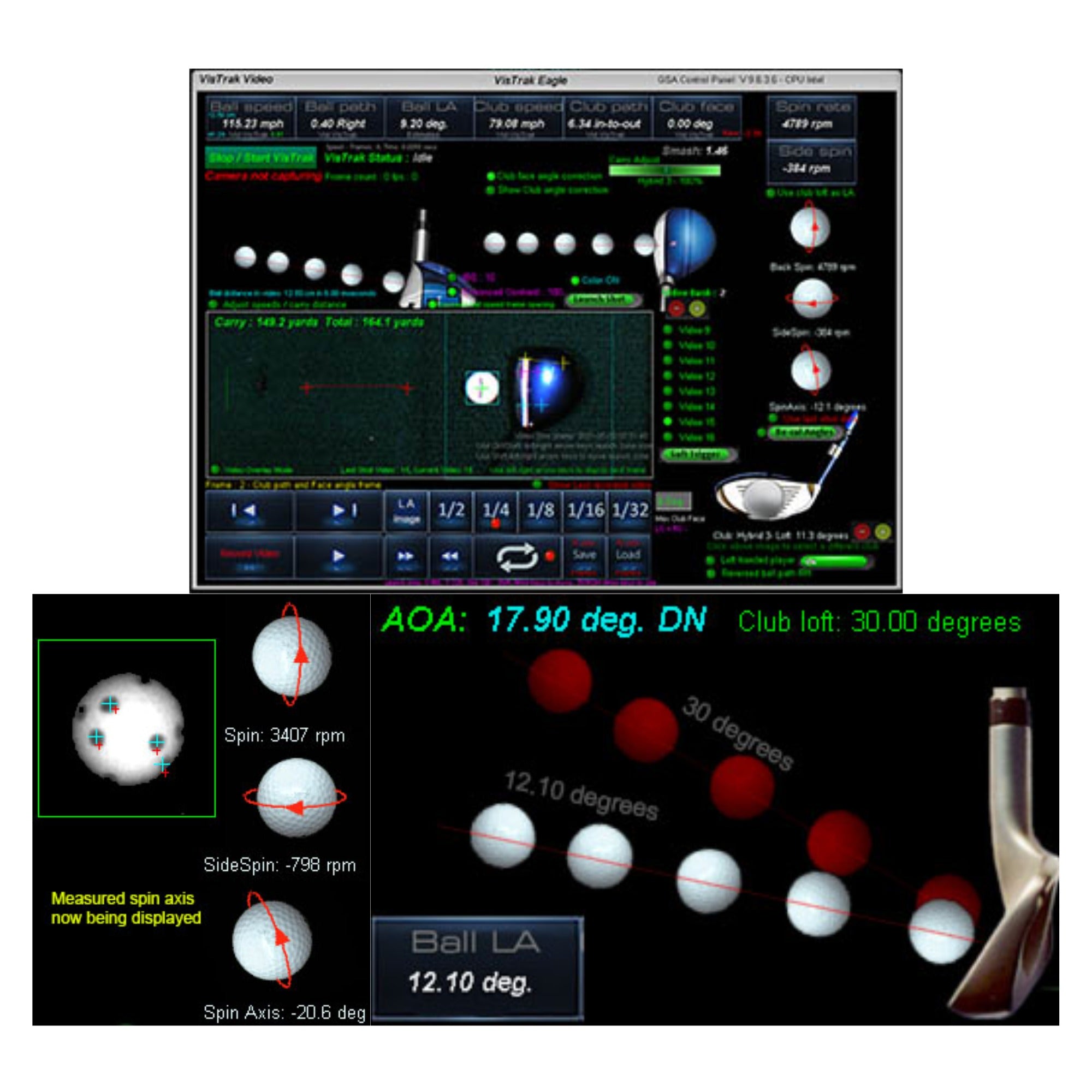

- Hi-speed swing video replay - Full shot playback video after every shot at 1500fps
- VLA estimated from trajectory - Vertical launch angle is calculated, not directly measured. A second camera is required for measured VLA
- Left and right-handed compatible - Works for both LH and RH players without moving the unit
- No proprietary balls required - Works with any ball carrying a logo or marking
- Modular upgrade path - The Eagle Compact can be added as a second camera to create an EVi-equivalent dual-camera system with measured VLA
- Compatible with all major simulator software - GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D
- Free 18-hole course included - GSA Golf Control Panel with 18-hole playable course
- Hand-built in the USA - Individually assembled and calibrated in Naples, Florida
In The Box
- VisTrak Eagle camera unit
- Dual IR LED track lighting arrays
- Laser ball placement indicator
- Mounting hardware (cables and ceiling brackets)
- 15ft USB 3 cable and 15ft USB3 extension cable for a total length of 30ft
Optional add-ons
- Eagle Compact launch monitor

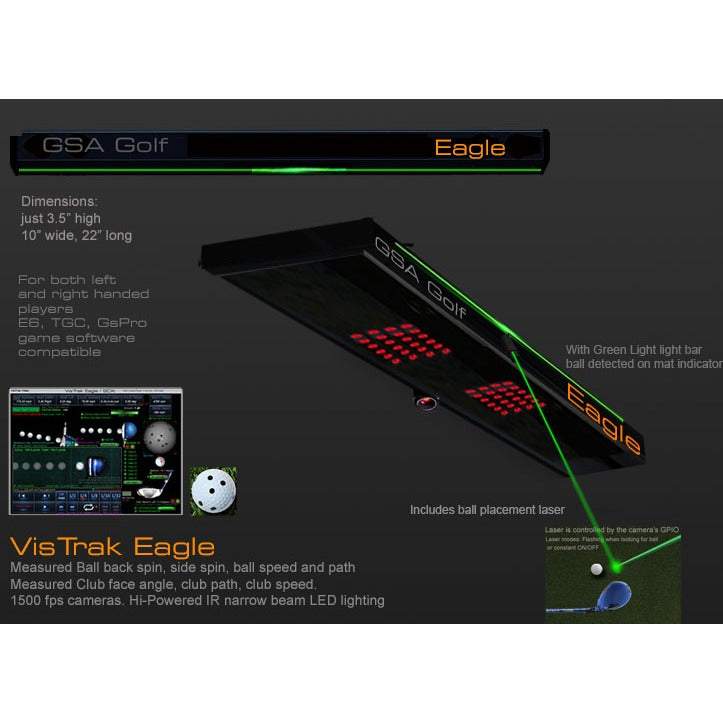

Specifications
| Camera type | Single hi-speed infrared, 1500fps |
| Mount type | Ceiling mounted |
| Dimensions | 3.5" high x 10" wide x 22" long |
| Ball parameters | Ball speed, HLA, VLA (estimated), backspin, sidespin |
| Club parameters | Club head speed, club path, club face angle |
| VLA measurement | Estimated from trajectory (not directly measured) |
| Lighting | Dual 24-LED IR arrays plus 4 zoom track lights |
| Compatible software | GSpro, E6 Connect, The Golf Club (TGC), Creative Golf 3D |
| Minimum PC | Intel i5 or above, Nvidia GTX 1070 or equivalent, Windows 10 or 11, USB 3.1 |
| Handedness | Left and right handed without repositioning |
| Warranty | 1 year on cameras |
| Lead time | 7-10 days from order |
| Origin | Hand-built in Naples, Florida, USA |
Manuals & Guides
Installation guide and setup documentation coming soon. For support, email support@simulatorshq.com
Before purchasing one of our high-speed camera tracking systems (i.e. SCX, Eagle, EVi or LX systems) please be noted of the following:
- The systems are not plug-n-play: Systems require some setup and installation. While most have no problem following the installation instructions, some may find them a little overwhelming. We are here to help though with free email support. Remote access support is also available. We guarantee all systems will function
- Systems are not wireless: All systems require a USB3 cable connection to the PC.
- Ball has to be played inline with the center of the unit i.e. you can't play the ball offset to one or the other side of the unit
- Systems are generally not suitable for commercial use i.e. commercial indoor golf facilities and/or Pro Golf instructors. This is primarily due to the additional amount of support required for these users which we can't supply. Systems are primarily intended for private home use only. While some do use the systems for commercial use, customers should be aware that GSA Golf does not take any responsibility for any loss of business due to systems not functioning correctly. Use of the of the systems in a commercial environment is solely at the user's risk.
- Accuracy: As all measured data (ball and club speeds, VLA and spin rates etc) are user adjustable, accuracy will depend on these adjustments. However, every effort is made to ensure that the default adjustments produce results as accurate as possible.
