DOF Reality 6-Axis Hero (H6)

All DOF Reality products incur US import tariffs which customers must pay directly to US Customs. Expected tariffs range from 10-20% of the sale price, though rates fluctuate and cannot be guaranteed due to changing tariff policies. We apologize for this uncertainty which is beyond our control.

Discover the full potential of our racing rig.

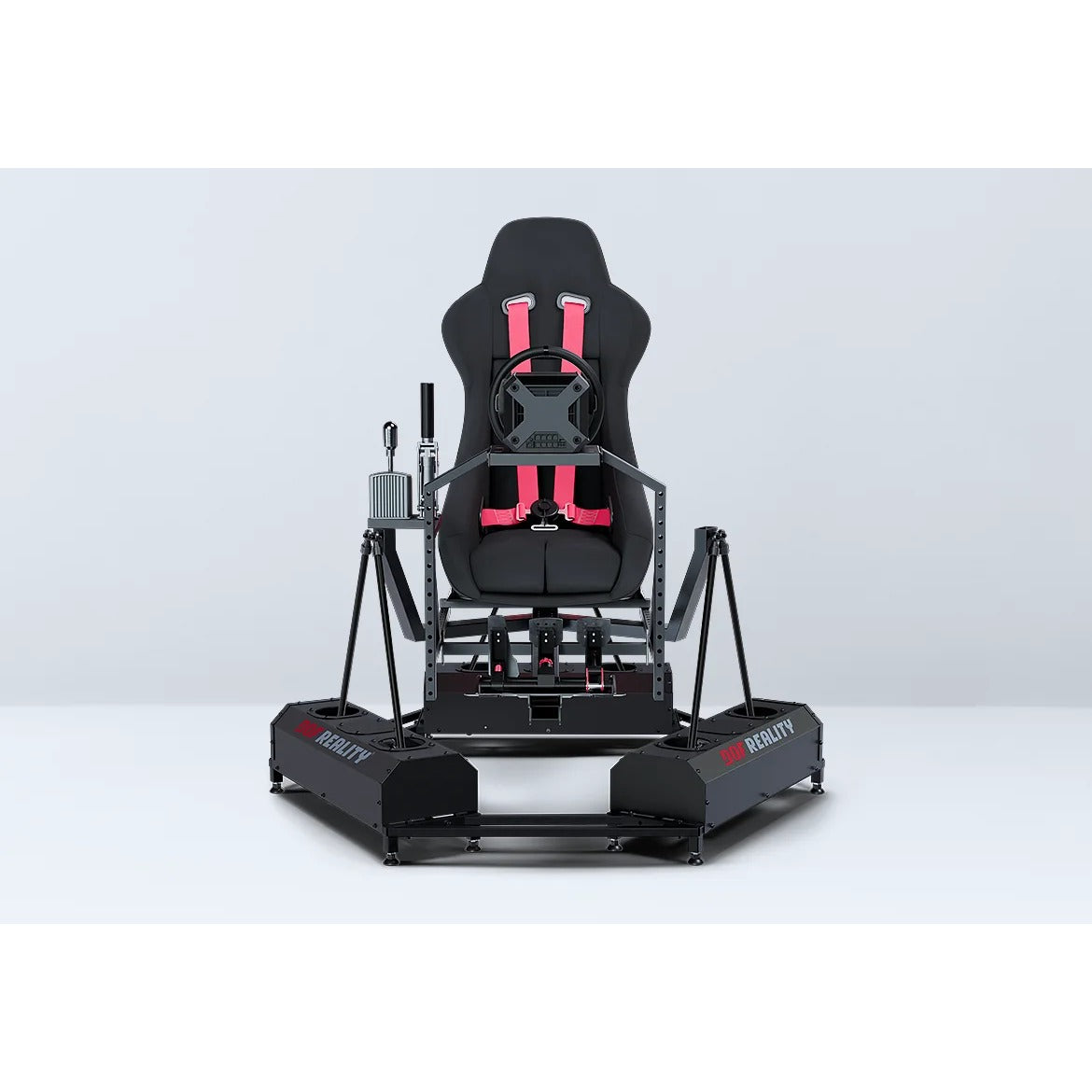

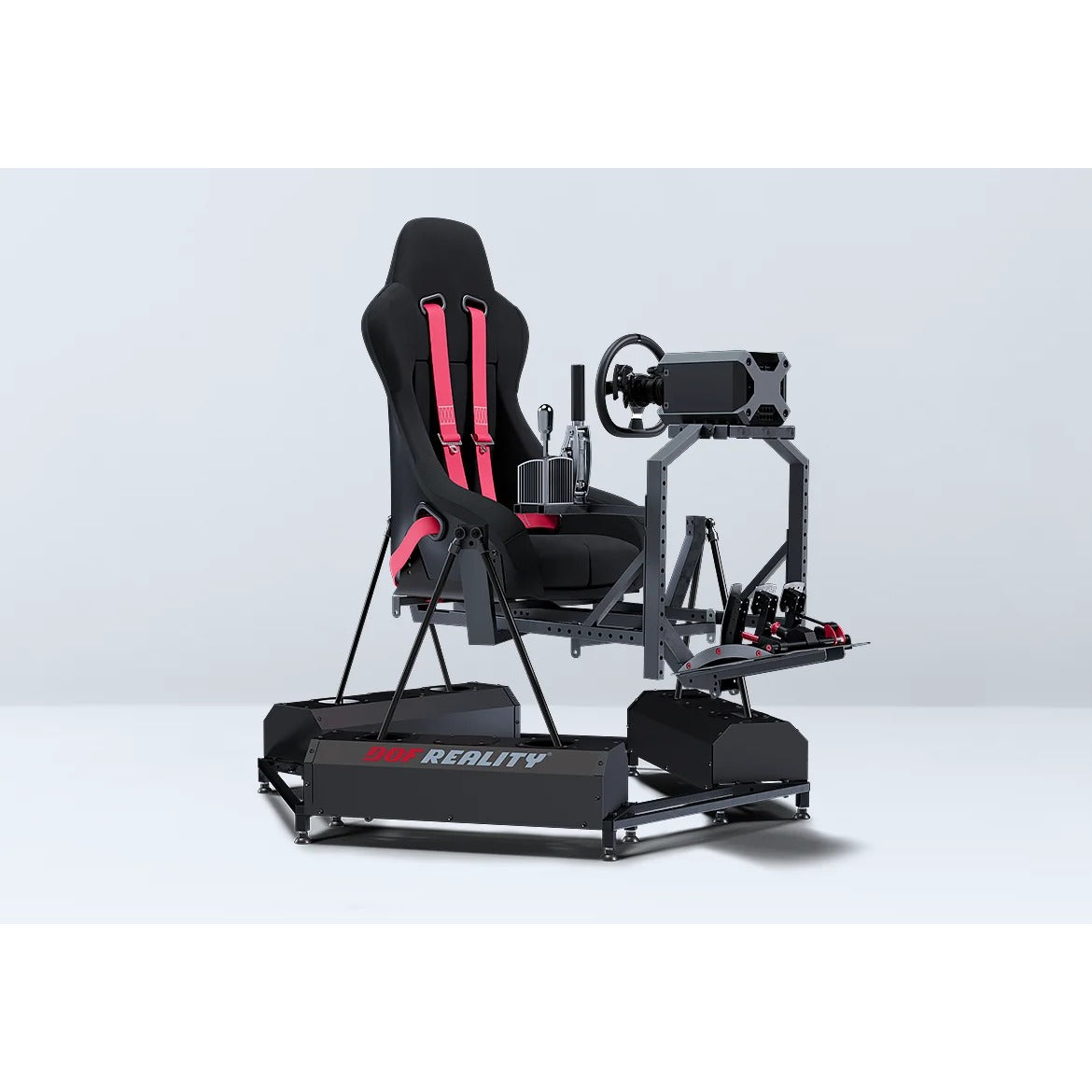

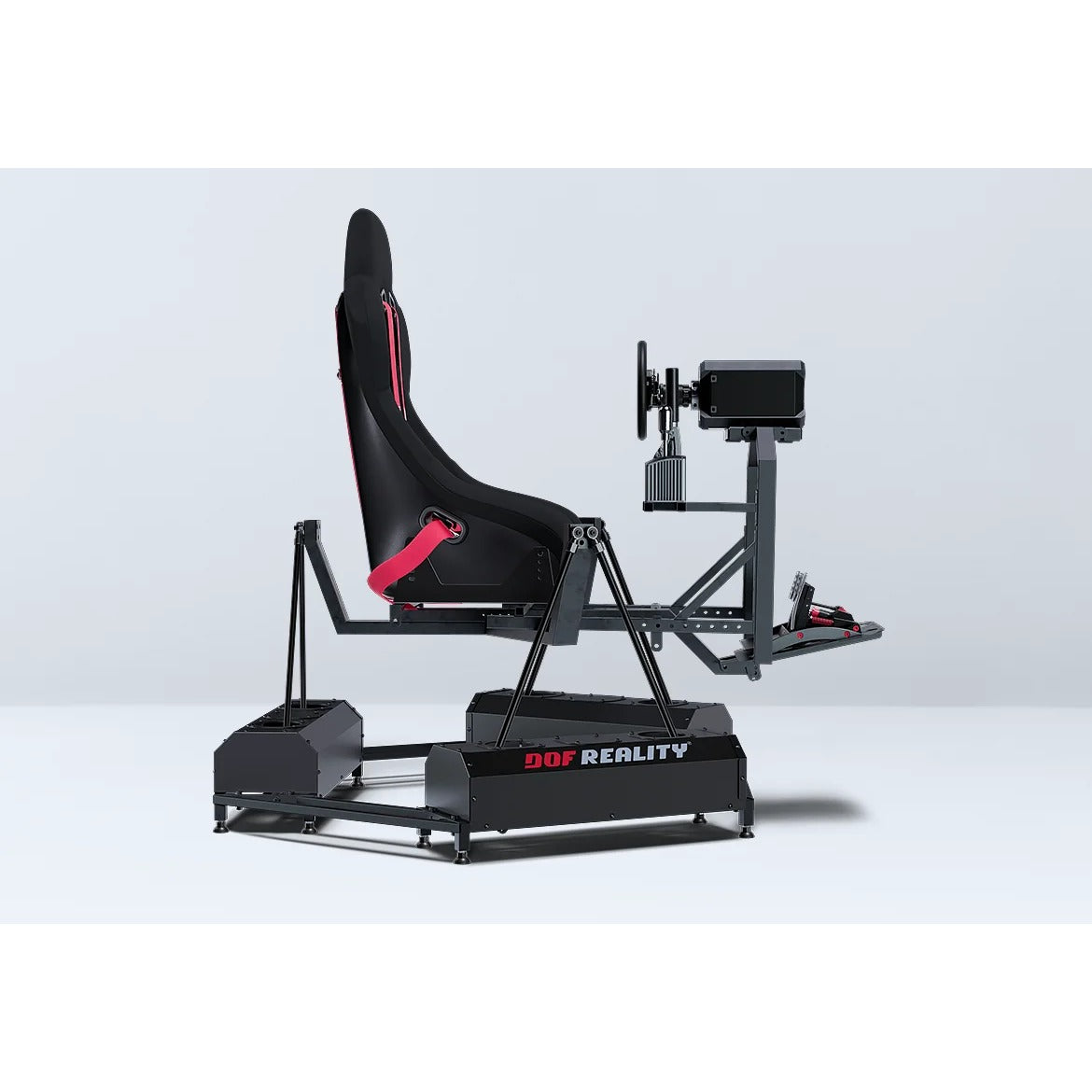

A 6-axis full-motion racing simulator platform that covers every degree of freedom - heave, roll, pitch, surge, sway, and yaw - the H6 is built for sim racers who want the closest physical reproduction of being in a real car. The entire cockpit moves as one unit: wheel, pedals, joystick, and monitor all shift with the seat, allowing the rig to simulate g-forces through muscle pressure points rather than simply tilting the frame.

True 6-axis motion means accelerations are genuinely reproduced, not approximated by tilting. Separate front and rear roll centers deliver independent body roll and yaw, and side-to-side (sway) and front-to-back (surge) movement are both present. Understeer, oversteer, and drift each produce distinct, recognizable sensations.

The included SimRacingStudio software reads live car telemetry to reproduce road texture, bumps, vibrations, gear changes, and collisions. The platform carries a 17-degree range of motion, 50 cm/s (86 deg/s) actuation speed, and 28 N/m torque per motor. DOF Reality has been building affordable motion platforms since 2014 and backs the H6 with a 1-year full warranty and 24/7 support.

Compatible across all major platforms and dozens of racing and flight games.

H6 Hero ships from Poland. Delivery to the US takes approximately 3-4 weeks. The platform is fully assembled and tested, then disassembled for transport. The platform ships in two boxes with all reassembly tools and hardware included.

Features

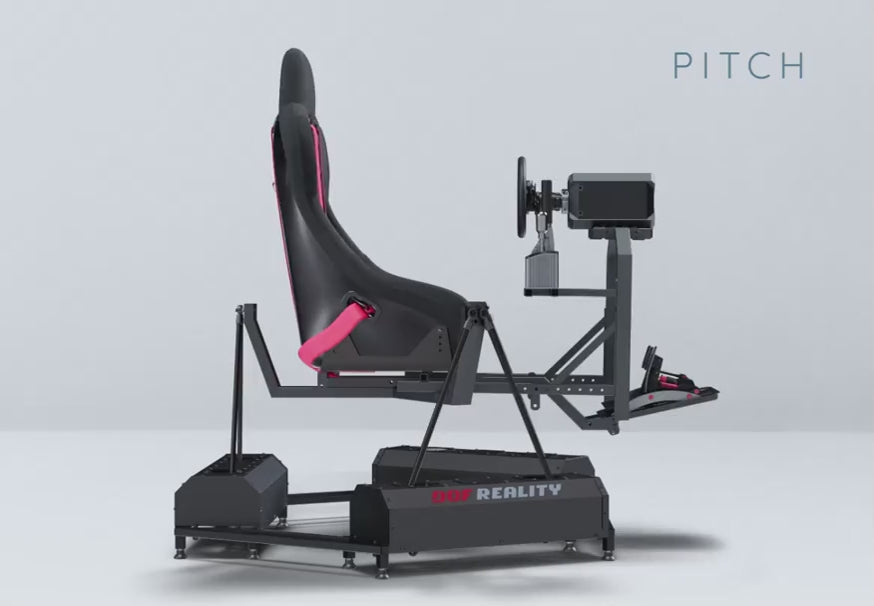

• True 6 degrees of freedom - Pitch, Roll, Yaw, Surge (front-to-back), Sway (side-to-side), and Heave (vertical) - every force a real car driver experiences
• Separate front and rear roll centers - Independent control of body roll and yaw for accurate oversteer, understeer, and drift feel
• True lateral and longitudinal motion - Sway and surge axes produce actual side-to-side and front-to-back body movement, not just tilting
• Full cockpit motion - Seat, wheel, pedals, shifter, and monitor all move as one unit
• Rigid metal motor covers included - Heavy-duty motor protection standard on the H6
• 28 N/m torque, 0.5G all directions
• GT and F1 positions - Reverse the main rail to switch seating pose
• SimRacingStudio license included - 145+ supported titles including iRacing, Assetto Corsa, Gran Turismo 7, Le Mans Ultimate
• 375 lbs / 170 kg pilot weight capacity
• Trusted by NASA, the US Navy, Airbus, MIT, and professional racing programs worldwide

In The Box

• Rigid metal motor covers
• Rigid metal rig (normal and F1 pose)
• Mounts for wheel, pedals, and shifter
• Mounts for seat or sliding rails

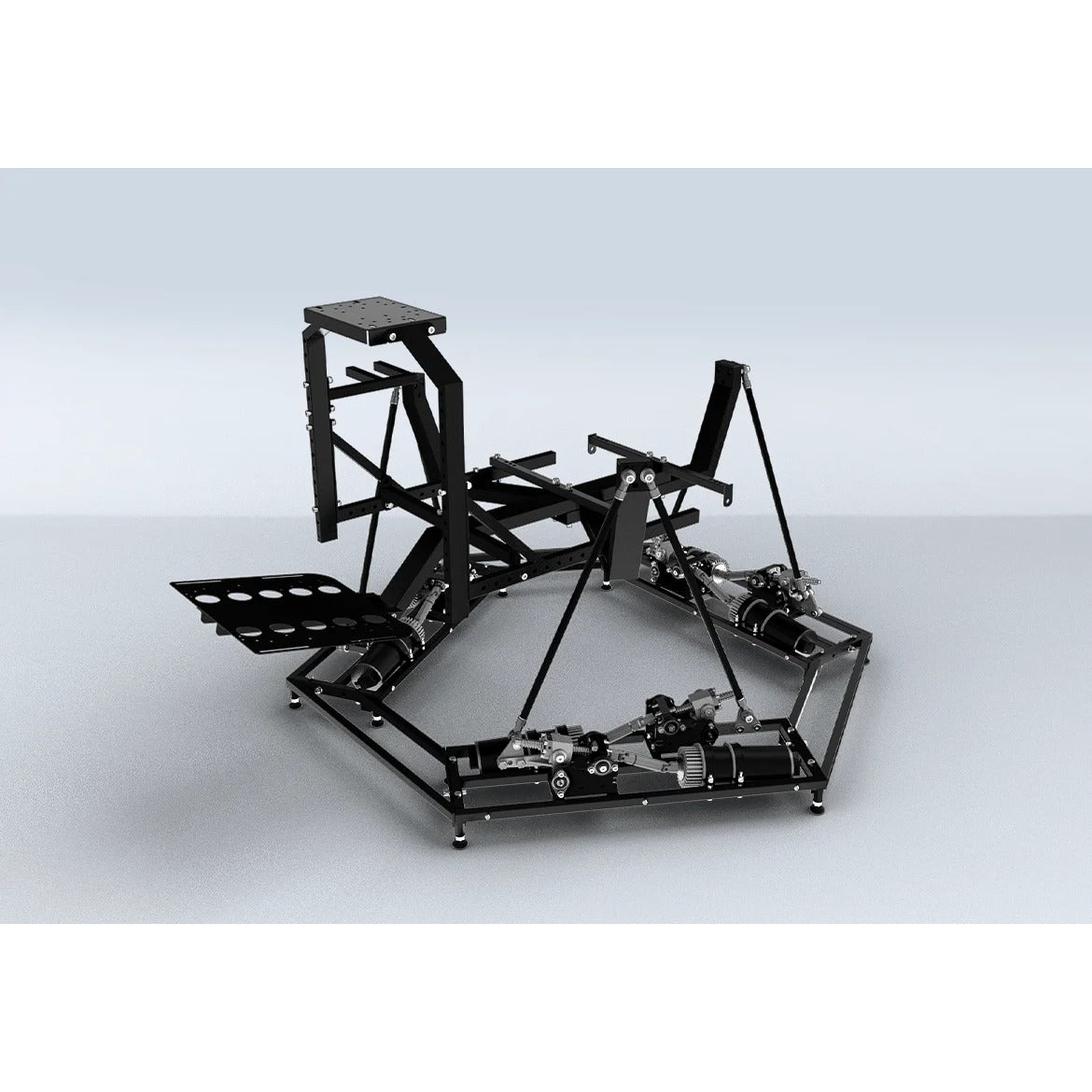

• Integrated power drive motors (pre-installed)
• 100-240V control unit with USB
• SimRacingStudio license
• Quick assembly tools
• 1-year full warranty

Please note: seat, VR headset, and controllers (wheel, pedals, etc.) are sold separately.
