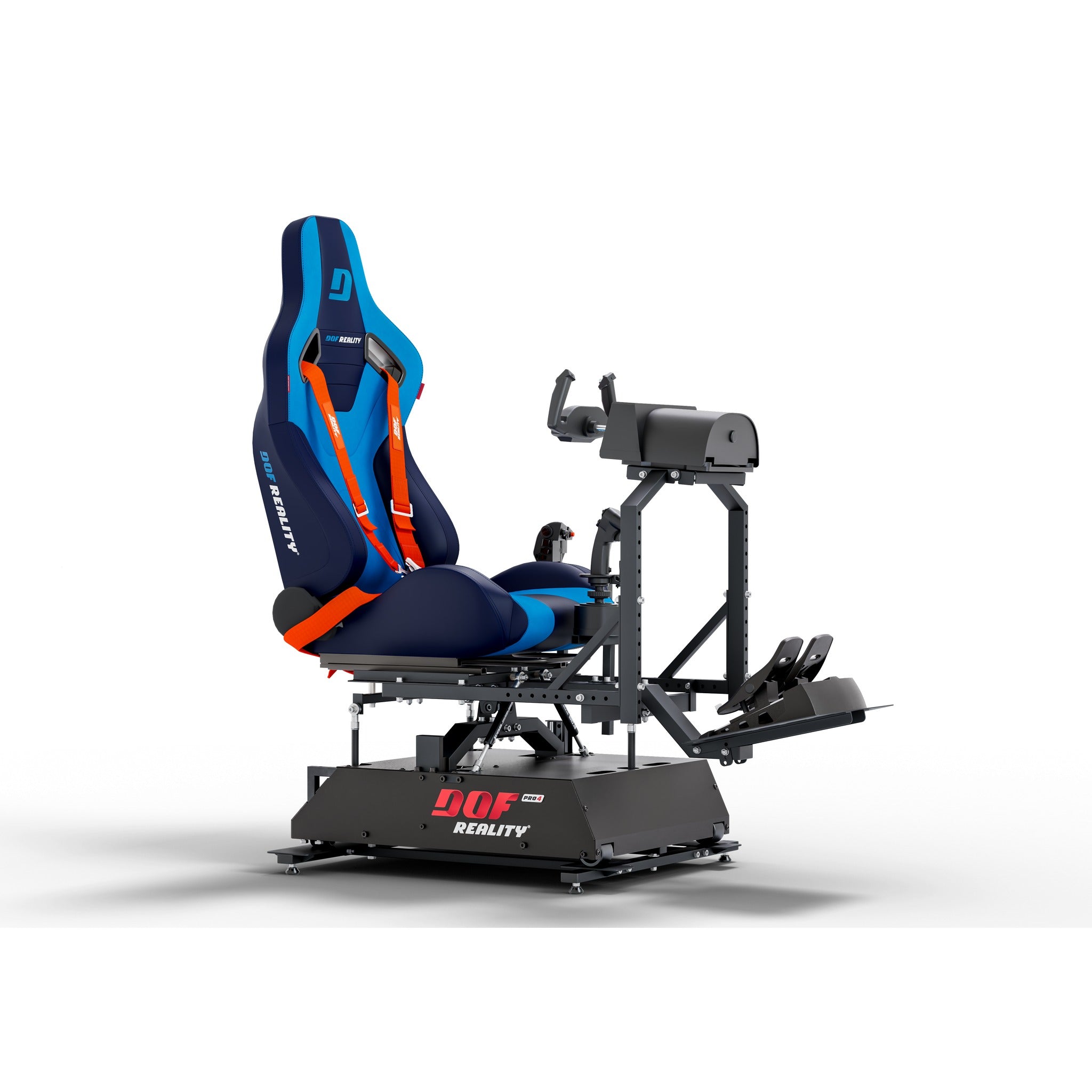

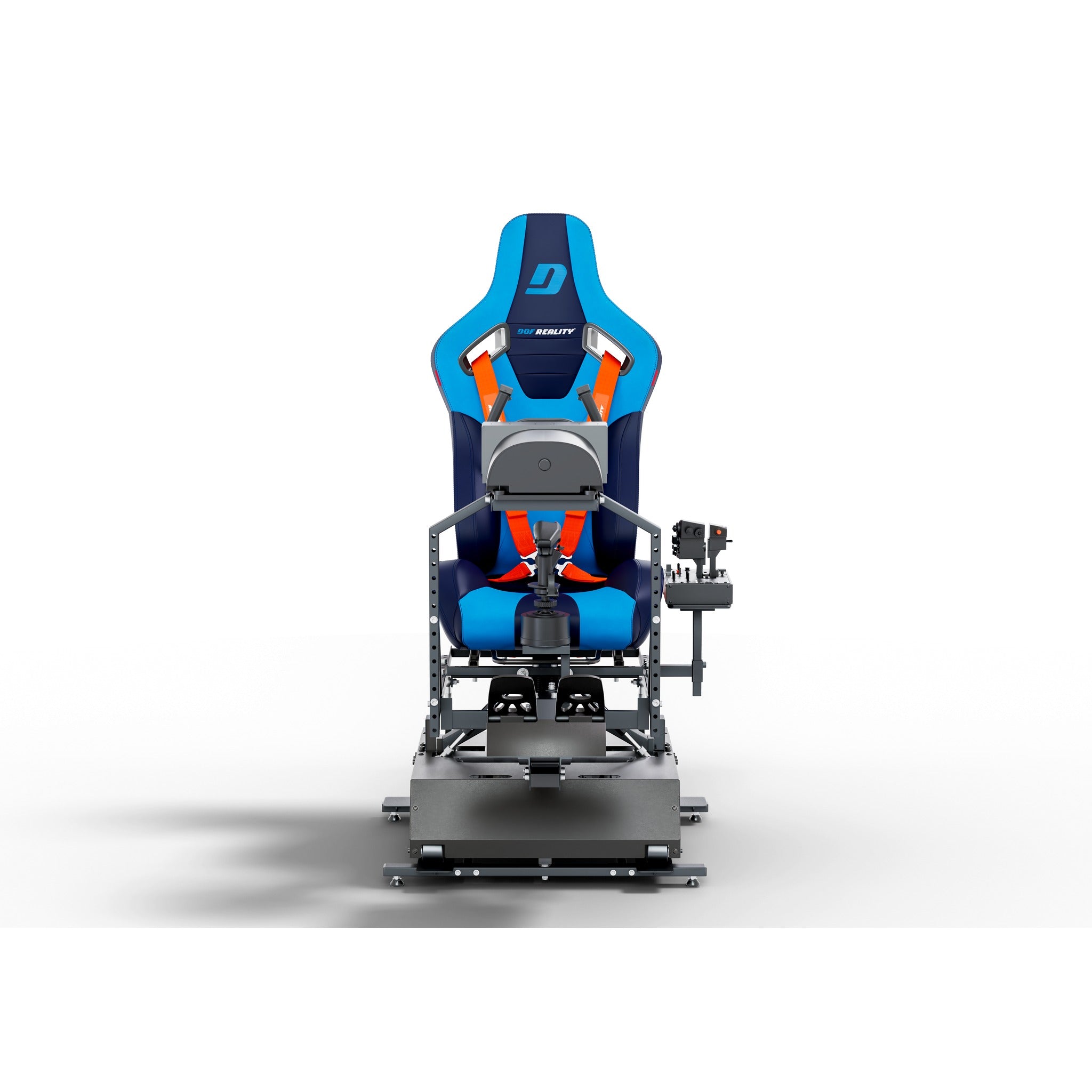

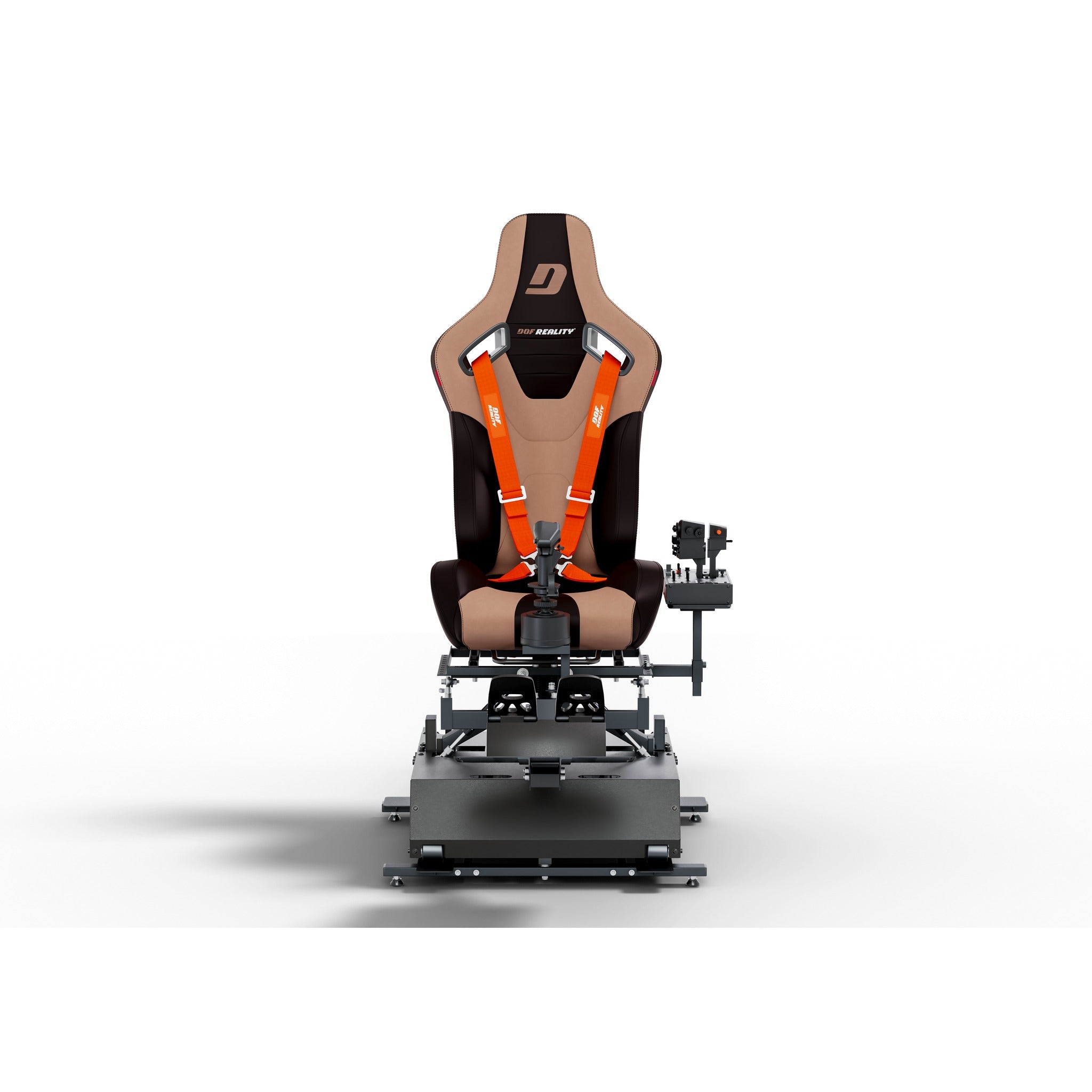

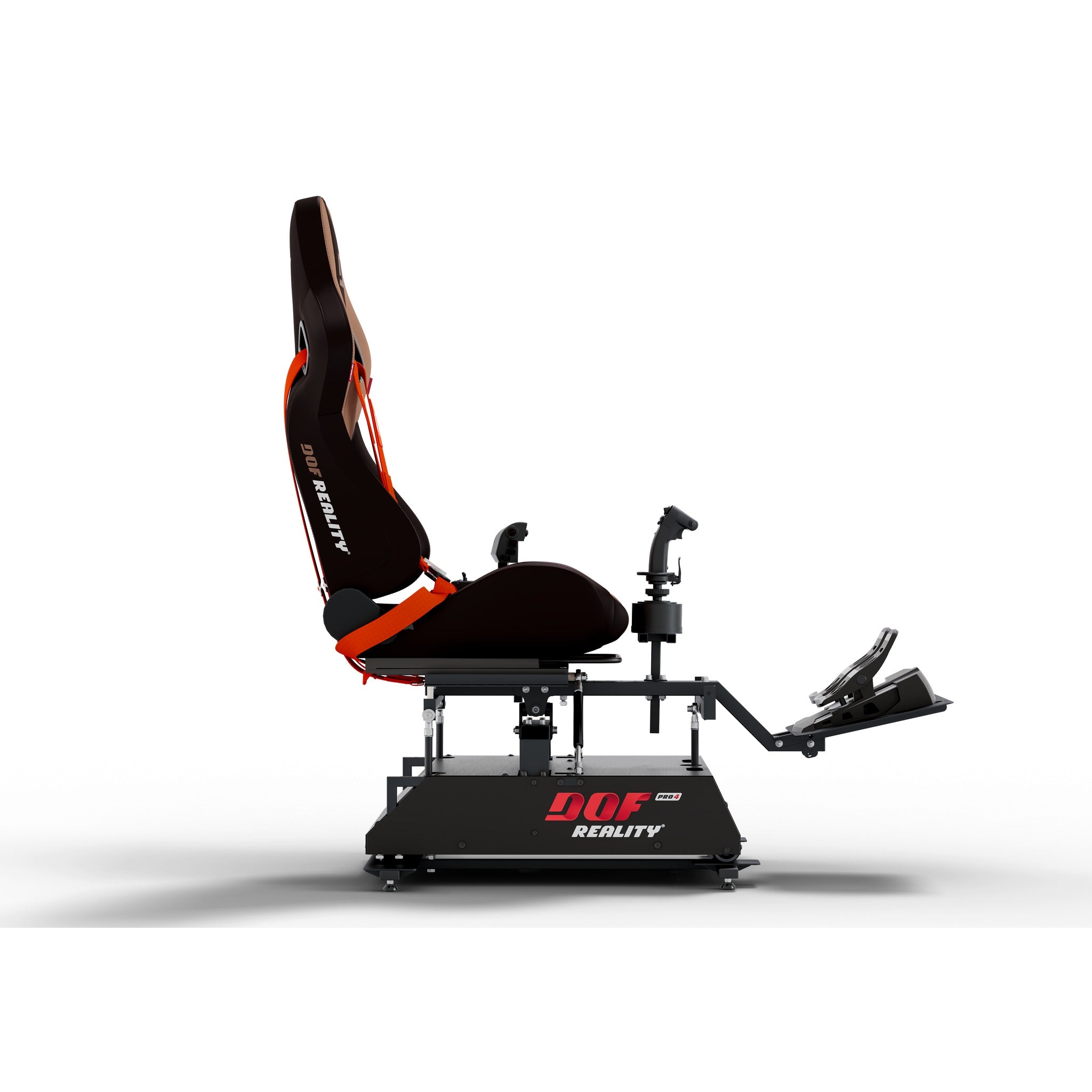

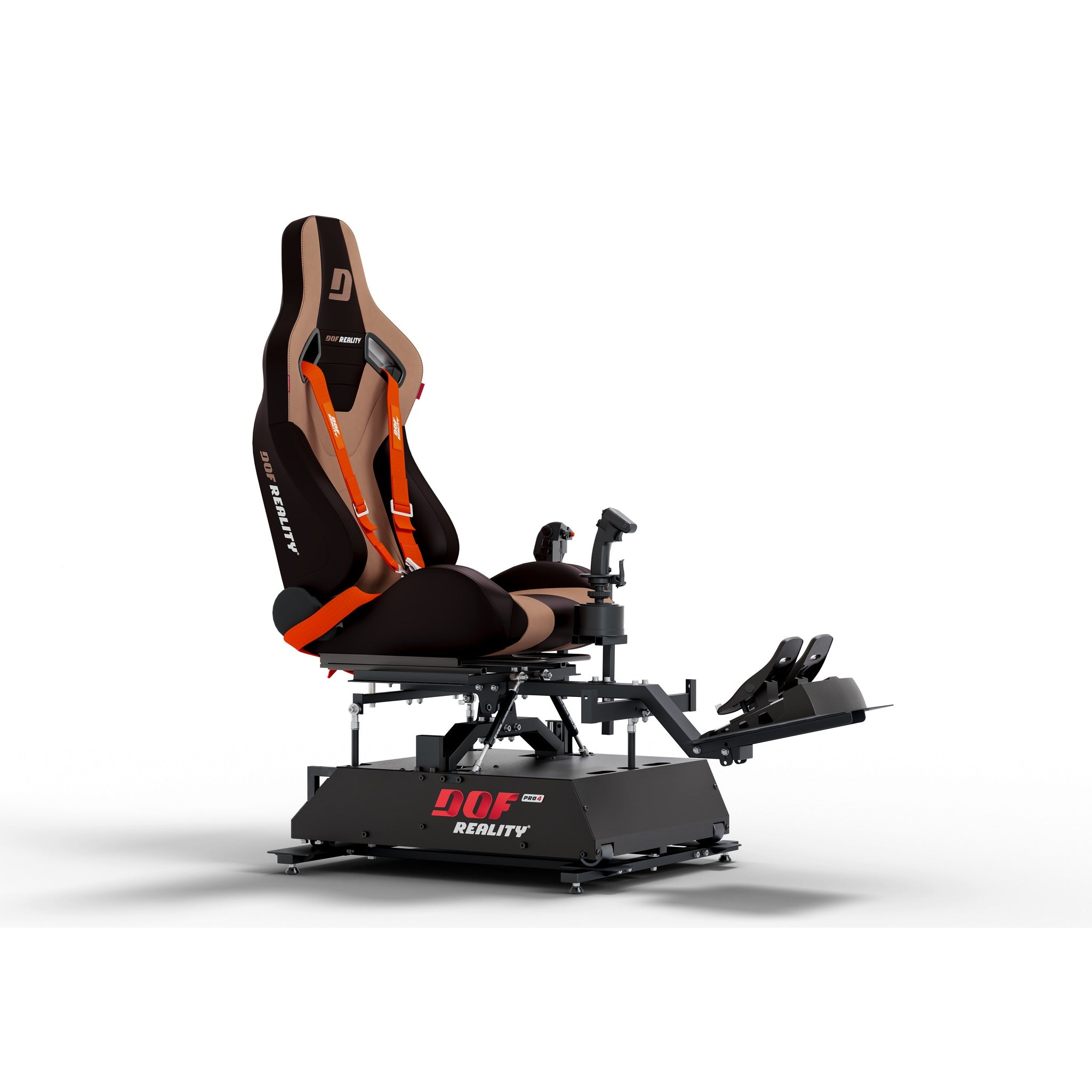

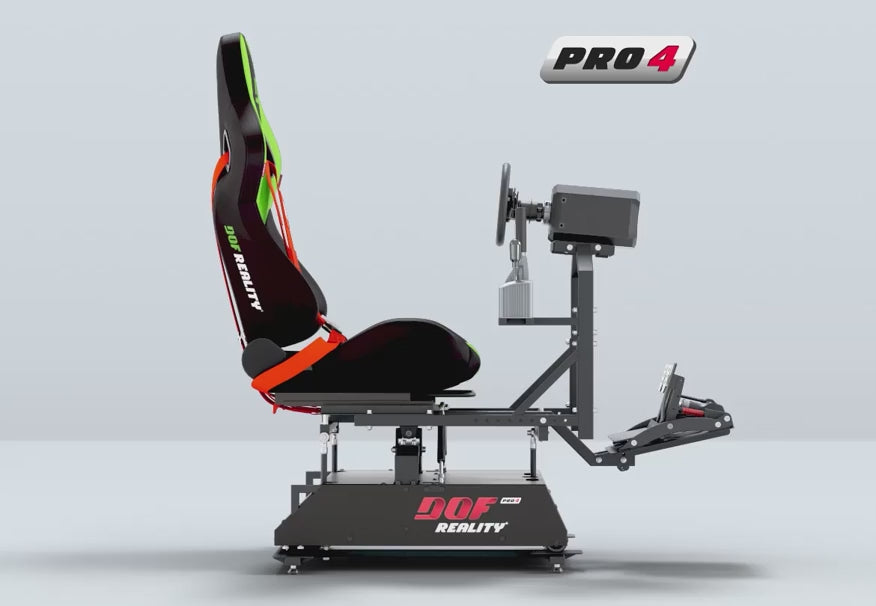

The P4 is a 4-axis PRO series motion platform built for professional racing environments and chosen by home buyers who want full 4-axis motion without compromise on performance or reliability.

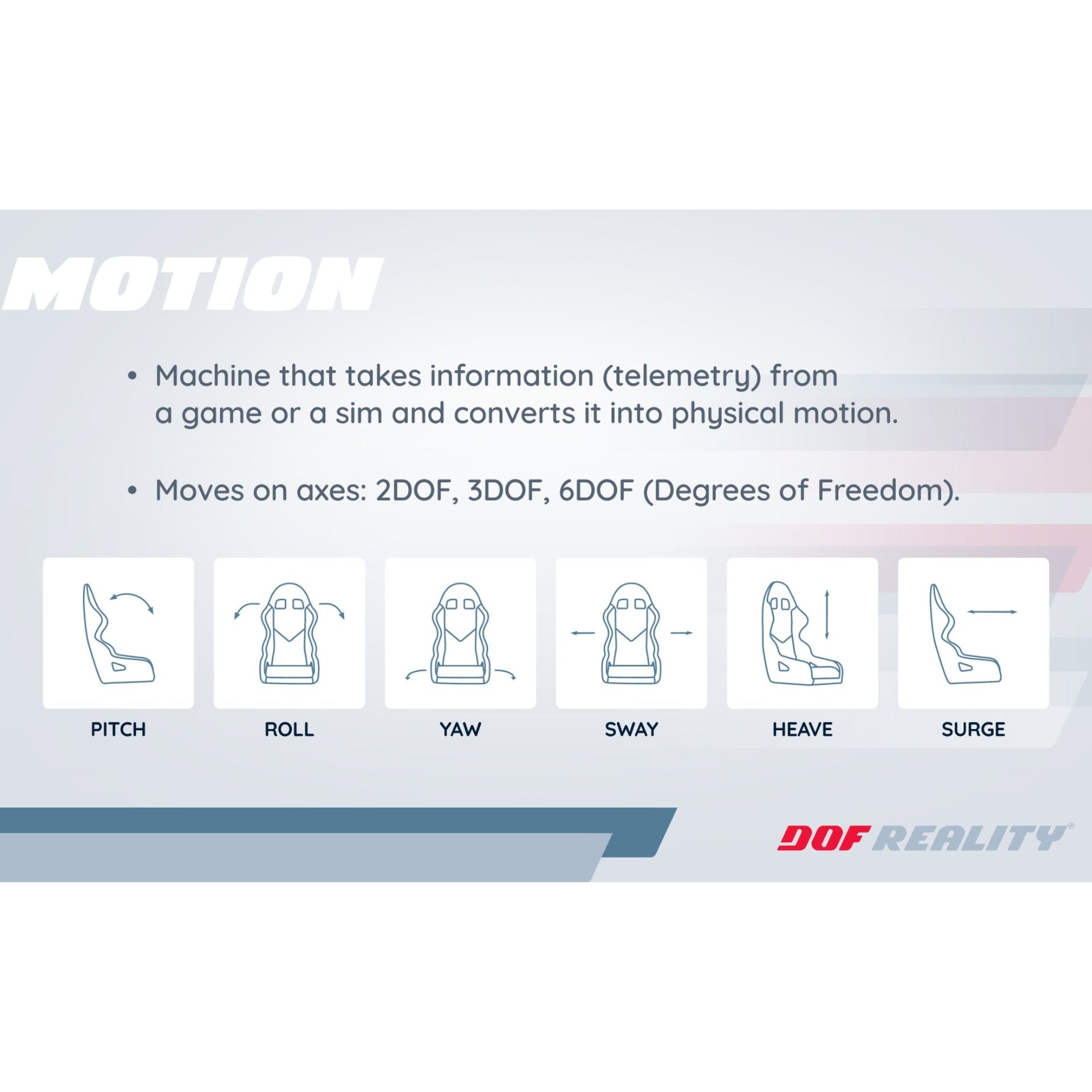

A 4-axis full-motion racing platform, the P4 delivers Pitch, Roll, Yaw with rear traction, and Heave. Pitch and Roll reproduce acceleration, braking, and cornering forces. Yaw simulates rear traction loss, oversteer, understeer, and drift initiation. Heave adds vertical movement so drivers feel road texture, curbs, bumps, elevation changes, jumps, and impact forces.
Built with professional-grade motors and reinforced mechanics, the platform is engineered for long sessions and long-term reliability. The same hardware class is deployed in commercial simulators worldwide and is equally suited to home use where professional-level performance is the goal.
Every primary component - seat, steering wheel, pedals, shifter, and displays - moves as a single rigid unit. This full-cockpit design enables accurate g-force feedback through body pressure points, so drivers feel vehicle behavior directly rather than inferring it from visual cues.
The platform runs SimRacingStudio software, which reads real-time vehicle telemetry and converts it into precise motion output - reproducing acceleration, braking, traction changes, road texture, vibrations, gear shifts, collisions, and dynamic racing forces.
Compatible across all major platforms and dozens of racing and flight games.
Ships from Poland. Delivery to the US takes approximately 3-4 weeks. The platform is fully assembled and tested, then disassembled for transport. The platform ships in two boxes with all reassembly tools and hardware included.
Features
- Professional PRO motors - Heavier-duty drive system rated for extended consecutive use in commercial environments; handles daily multi-hour sessions
- SFU + Xtra Smooth Gearing - Additional gearbox per motor provides exceptional smoothness for slow, continuous sim movements including flight and precision driving
- Full cockpit motion - Seat, wheel, pedals, shifter, and monitor move as one unit; g-forces transmitted through body pressure points
- 4 degrees of freedom - Pitch, Roll, Yaw/Rear Traction Loss, and Heave (vertical G-forces)
- 75 cm/s (105°/s) speed - 50% faster than HERO series motors for more responsive motion tracking
- 28 N/m torque - Handles direct drive wheels over 30 Nm and hydraulic pedals
- SimRacingStudio license included
- PC, console (select games), and VR compatible
- 440 lbs / 200 kg pilot weight capacity
In The Box
- Rigid metal motor covers (H6/P6 level)
- Rigid metal rig (normal and F1 pose)
- Mounts for wheel, pedals, and shifter
- Mounts for seat or sliding rails
- Integrated power drive motors with SFU + Xtra Smooth Gearing (pre-installed)
- 100-240V control unit with USB
- SimRacingStudio license
- Quick assembly tools
- 1-year full warranty
Please note: seat, VR headset, and controllers sold separately.
Specifications
| Degrees of Freedom | 4 degrees of freedom - Pitch, Roll, Yaw/Rear Traction Loss, and Heave (vertical G-forces) |
| Full Platform Motion | Yes (entire rig moves) |
| Range of Motion | 20° |
| Speed | 75 cm/s (105°/s) |
| Torque | 28 N/m |
| Acceleration | 0.75G transverse / 0.5G longitudinal |
| Power Consumption | 750 Watt (peak) |
| Pilot Weight Capacity | 440 lbs / 200 kg |
| Footprint | 3×5 ft, 2 ft H (100×150 cm, 60 cm H) |
| Box Weight | 2 boxes: 78 lb + 97 lb |
| Material | Commercial grade metal profiles |
| Compatible Software | SimRacingStudio (included); 145+ games on PC, PS4/5, Xbox |
| Connectivity | USB to PC |
| Warranty | 1 year full warranty |
| Shipping Origin | Warsaw, Poland |
| Estimated US Delivery | 3-4 weeks from order |
| Upgradeable To | P6 (6-Axis PRO) |
