H3 motion sim ran 8 hours a day for 3 days straight, thrilling over 140 aviation enthusiasts.

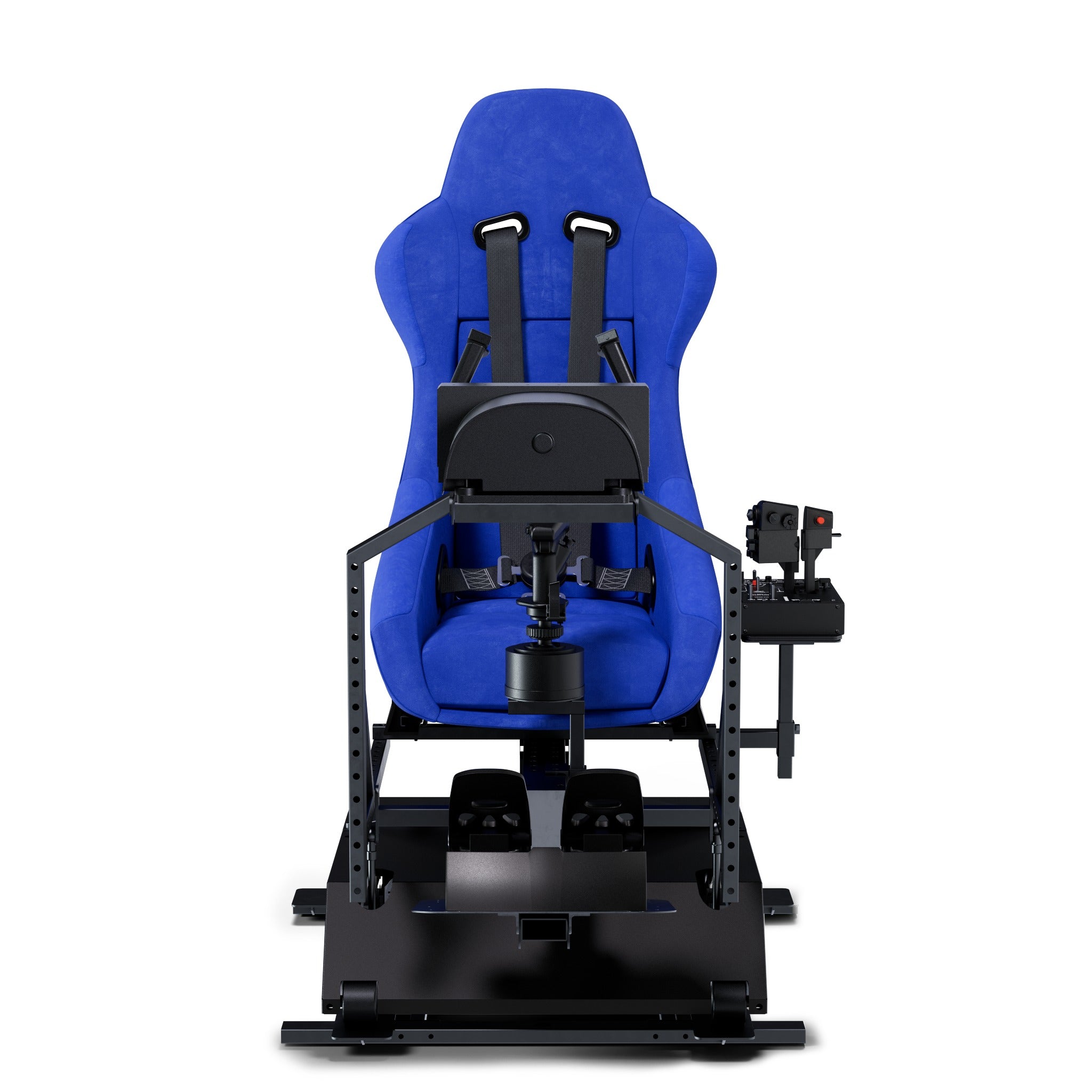

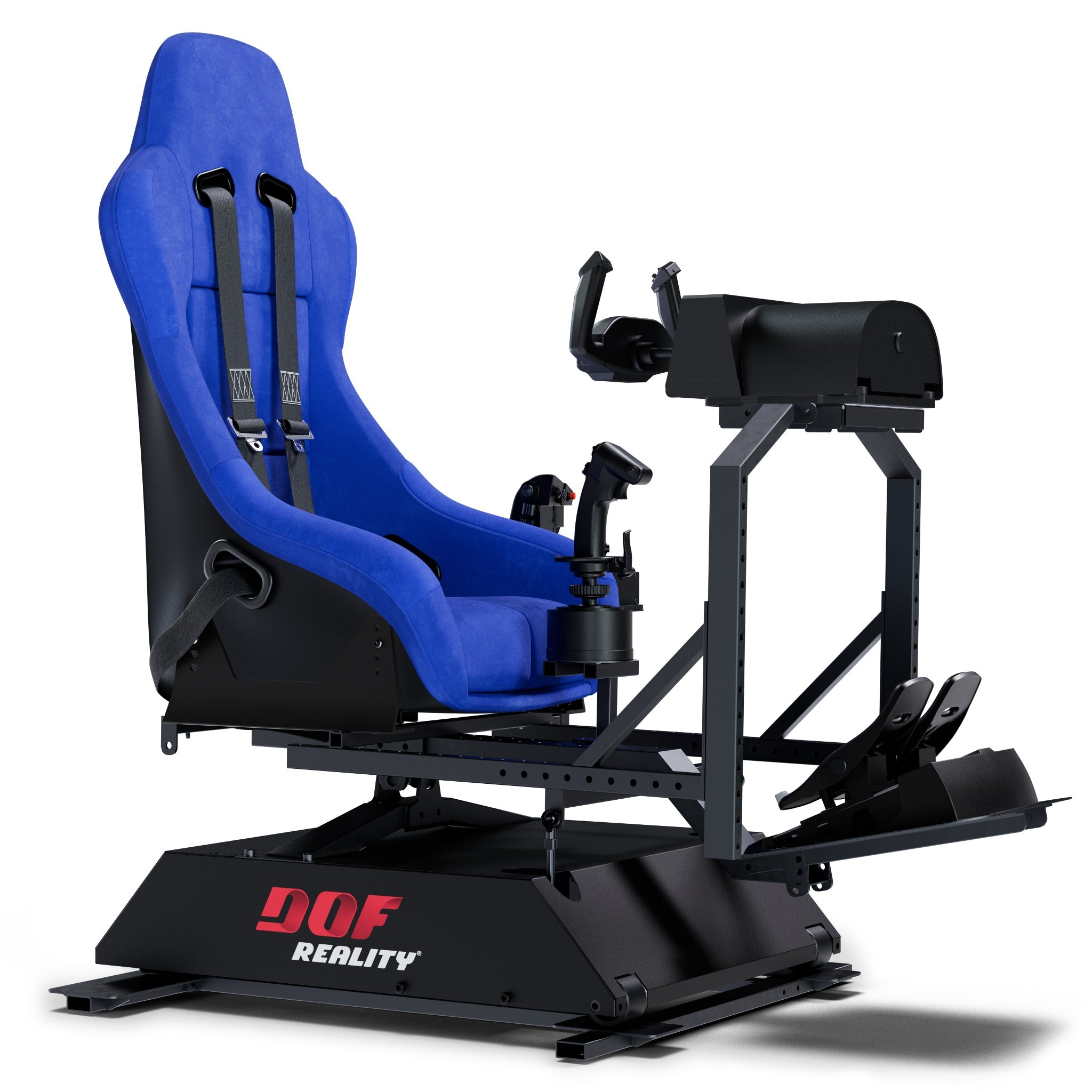

A full-cockpit 3-axis motion platform built for flight and helicopter simulation, the H3 HERO (flight version) moves the entire cockpit - yoke, pedals, joystick, and monitor along with the seat - across pitch, roll, and yaw to reproduce the physical sensations of real flight. It is the flight-specific variant of the H3 platform and is equally capable of helicopter and racing simulation without compromise.
The key difference from the racing version is an additional gearbox fitted to each motor. These extra gearboxes deliver smoother, quieter motion during the slow, continuous control inputs that characterize flight and helicopter simulation - movements that would otherwise expose mechanical roughness in a standard drivetrain.
The platform delivers 3 degrees of freedom at 50 cm/s (86 deg/s), 25 Nm torque, and a 20-degree range of motion per axis. It is built from commercial-grade steel profiles and supports pilots up to 440 lbs (200 kg). The SFU gearboxes eliminate backlash and reduce noise compared to worm-gear alternatives.
Motion is driven by a SimRacingStudio license included with the rig, which reads aircraft telemetry to reproduce runway bumps, turbulence, coordinated and uncoordinated turns, climbs, descents, and collisions as distinct physical cues. Compatible sims include Microsoft Flight Simulator 2020 and 2024, X-Plane 10/11/12, DCS World, IL-2 Sturmovik, and others. Windows, PlayStation, and Xbox are all supported.
Compatible across all major platforms and dozens of racing and flight games.
H3 Hero ships from Poland. Delivery to the US takes approximately 3-4 weeks. The platform is fully assembled and tested, then disassembled for transport. The platform ships in two boxes with all reassembly tools and hardware included.
Features
- Full cockpit motion - Seat, HOTAS/yoke, throttle, and all controls move together as one unit
- 3 degrees of freedom - Pitch (nose up/down), Roll (bank angle), and Yaw (skidding, sideslip, coordinated turns)
- 20° range of motion at 50 cm/s (86°/s)
- Accurate yaw feedback - Feel the difference between coordinated turns and skidding; correct for it before it becomes visible on screen
- HOTAS, yoke, and VR compatible - HOTAS mounts kit and HoneyComb A+B adapter available separately
- SimRacingStudio license included
- 27+ supported flight and helicopter titles - MSFS 2024, DCS, X-Plane 12, IL-2, War Thunder, and more
- Upgradeable to H6r - 6-axis heave/surge/sway available via upgrade path
- 440 lbs / 200 kg pilot weight capacity
In The Box
- Rigid metal rig (normal and F1 pose)
- Mounts for seat or sliding rails
- Integrated power drive motors (pre-installed)
- 100-240V control unit with USB
- SimRacingStudio license
- Quick assembly tools
- 1-year full warranty
Please note: seat, VR headset, and flight controls (HOTAS, yoke, pedals) are sold separately.
Specifications
| Degrees of Freedom | 3 DOF (Pitch + Roll + Yaw) |
| Full Platform Motion | Yes (entire rig moves) |
| Range of Motion | 20° |
| Speed | 50 cm/s (86°/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse / 0.5G longitudinal |
| Power Consumption | 750 Watt (peak) |
| Pilot Weight Capacity | 440 lbs / 200 kg |
| Footprint | 3×5 ft, 2 ft H (100×150 cm, 60 cm H) |
| Box Weight | 2 boxes: 78 lb + 97 lb |
| Material | Commercial grade metal profiles |
| Compatible Software | SimRacingStudio (included); MSFS 2024, DCS, X-Plane 12, IL-2, and 27+ titles |
| Connectivity | USB to PC |
| Warranty | 1 year full warranty |
| Shipping Origin | Warsaw, Poland |
| Estimated US Delivery | 3-4 weeks from order |
| Upgradeable To | H6r (6-Axis) |
