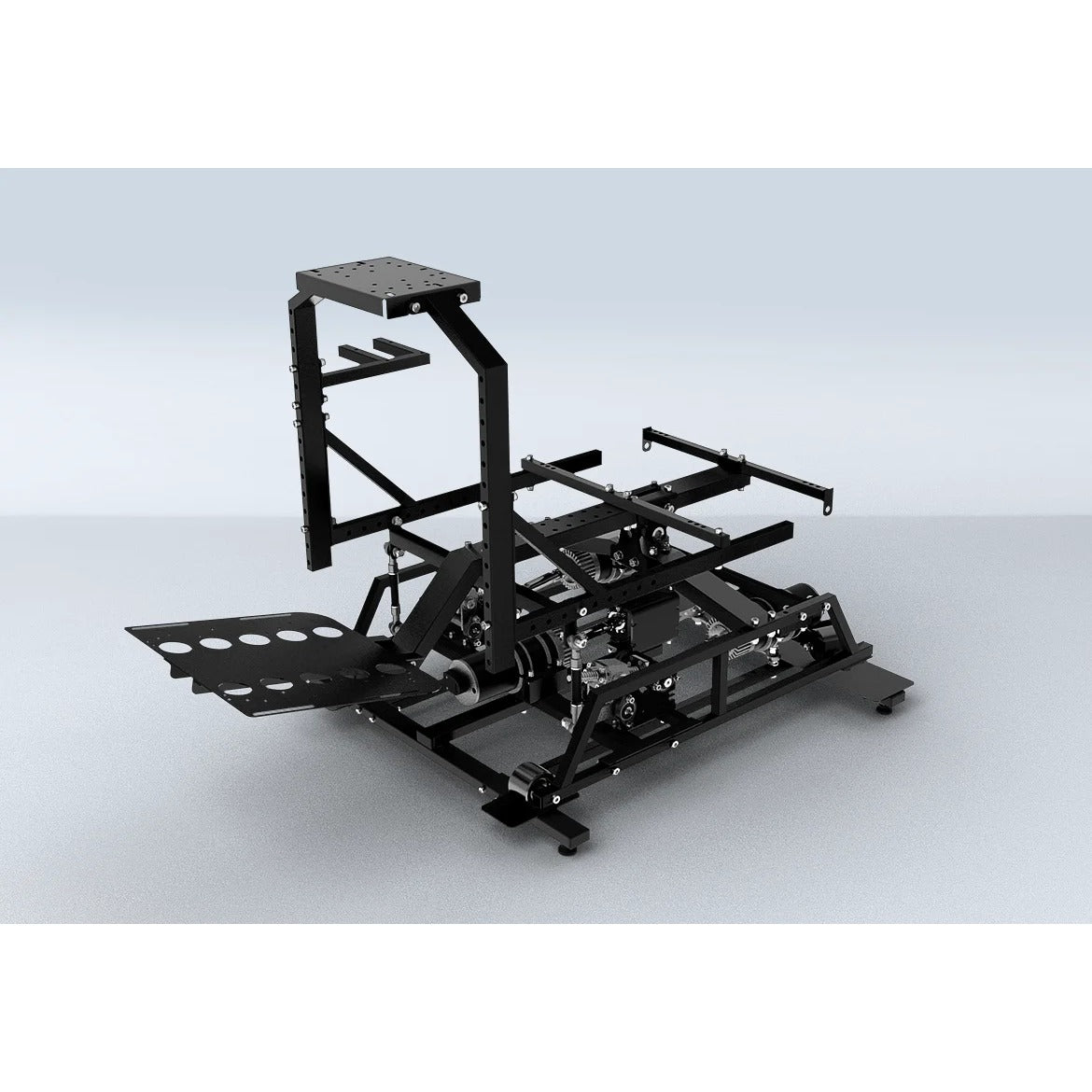

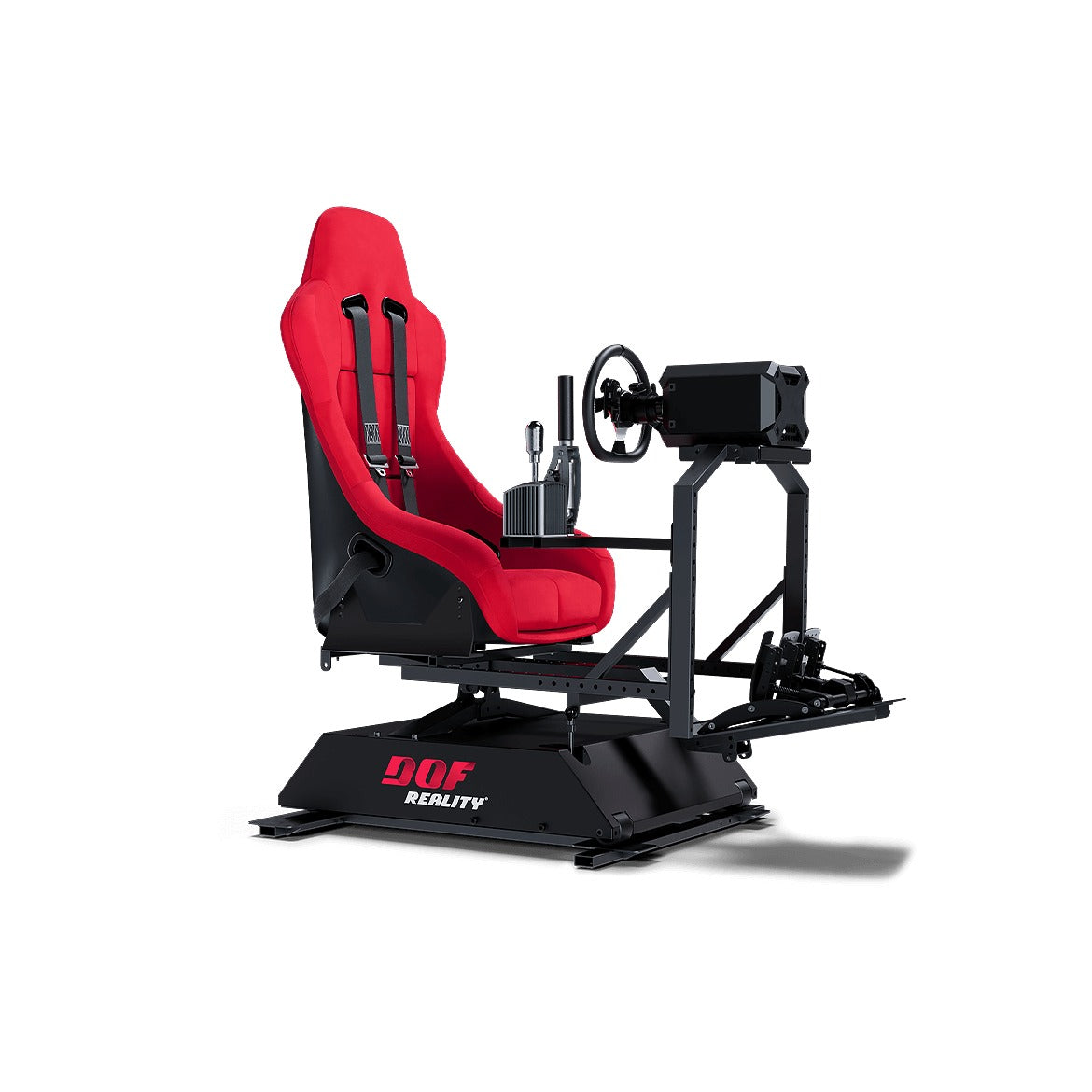

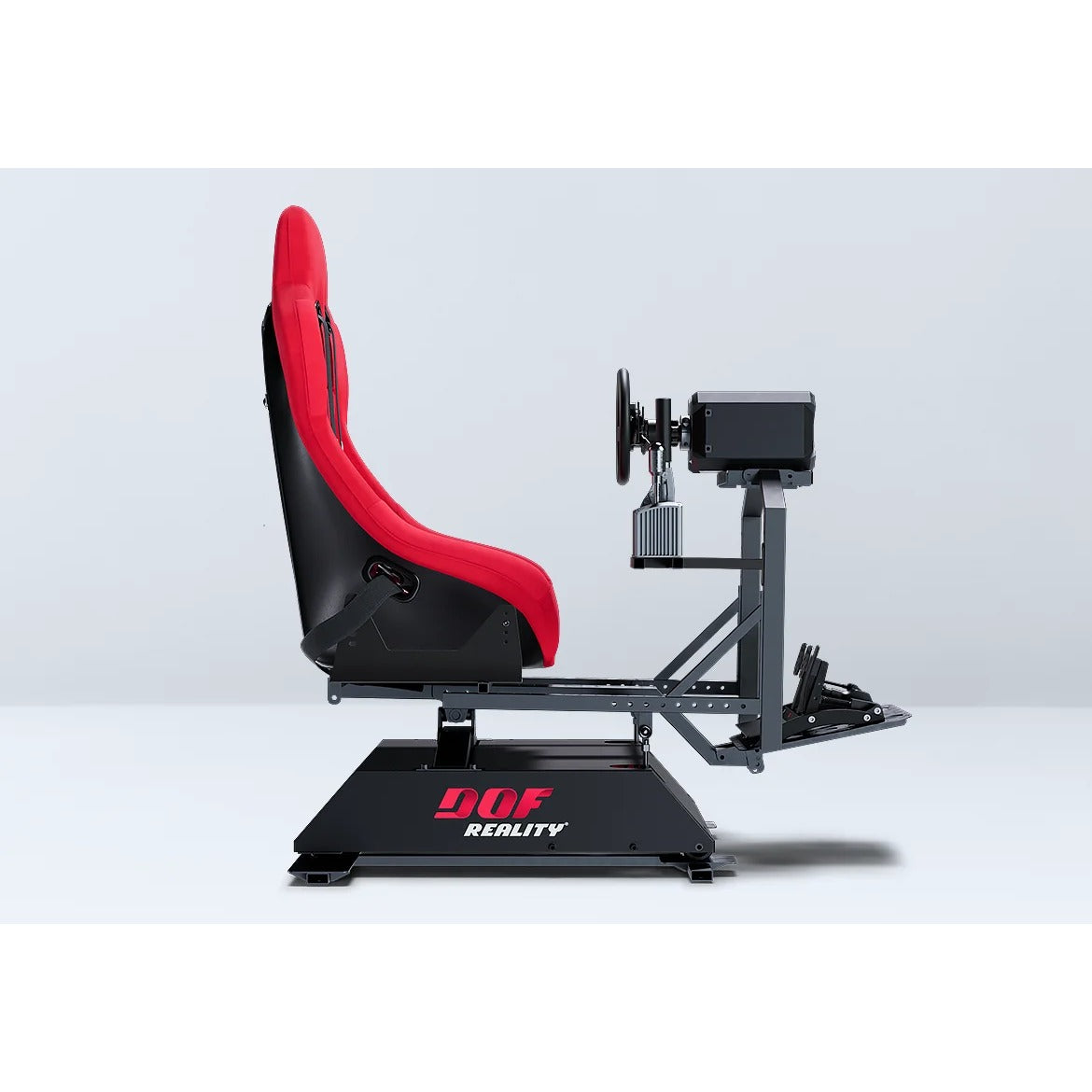

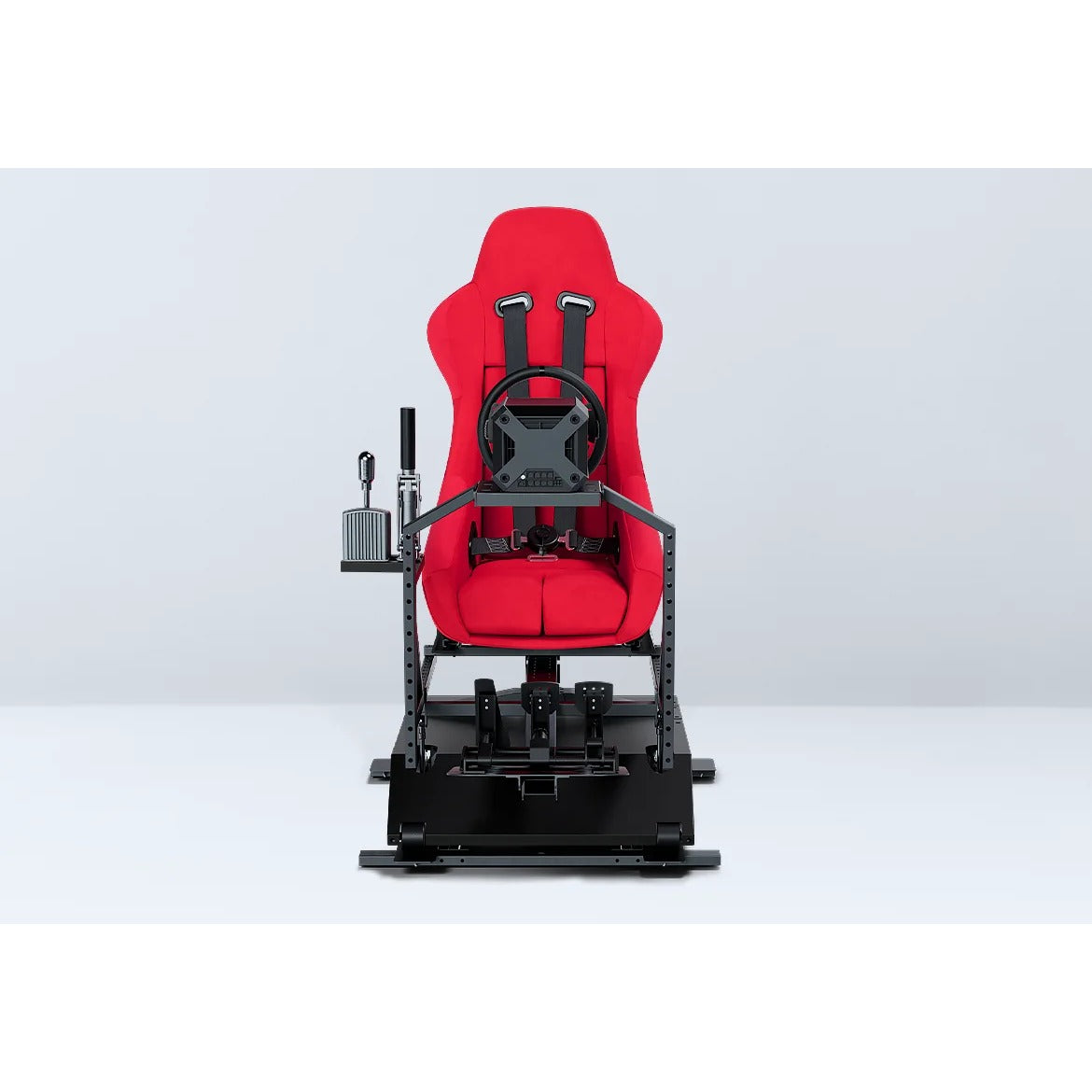

A full-cockpit motion racing rig with 3 degrees of freedom - pitch, roll, and yaw with rear traction loss - the H3 HERO moves your entire setup (seat, wheel, pedals, and monitor together) to replicate the physical forces of a real car. It is the most popular platform in the HERO range and a natural step up from the 2-axis H2.
Engineered from commercial-grade steel profiles and in production since 2014, the H3 supports pilots up to 330 lbs (150 kg) with a motion speed of 50 cm/s (86 deg/s), 25 Nm of torque, a 20-degree range of motion per axis, and a peak power draw of 750 watts.
The rear traction loss axis - the third degree of freedom - simulates understeer, oversteer, and drifting as distinct, separately modeled sensations rather than a single generic movement. Roll and pitch reproduce lateral and longitudinal g-forces through muscle pressure points across the body.
The rig ships with a SimRacingStudio license, which reads real-time car telemetry to drive road bumps, texture, gear changes, vibrations, and collision effects. All cables and motion software are included.
Compatible across all major platforms and dozens of racing and flight games.
H3 Hero ships from Poland. Delivery to the US takes approximately 3-4 weeks. The platform is fully assembled and tested, then disassembled for transport. The platform ships in two boxes with all reassembly tools and hardware included.
Features
- Full cockpit motion - Entire rig (seat, wheel, pedals, shifter, monitor) moves as one unit

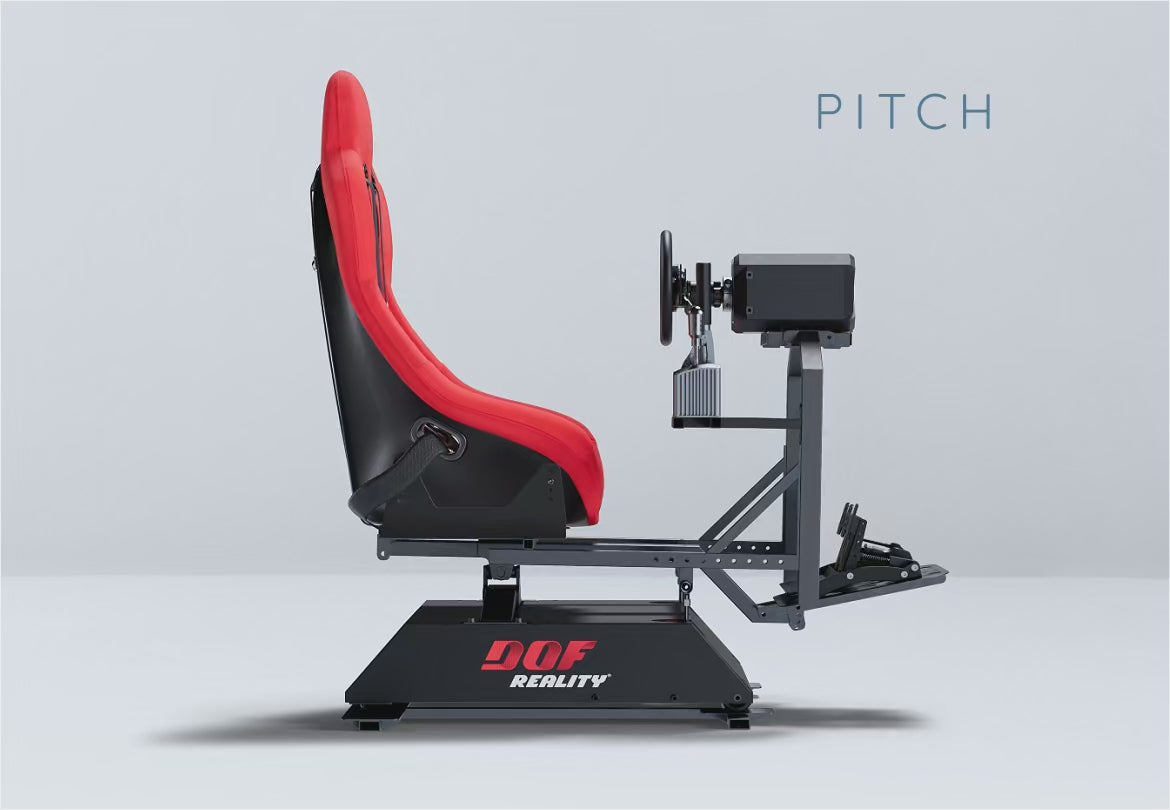

- 3 degrees of freedom - Pitch (braking/acceleration), Roll (cornering), and Yaw/Rear Traction Loss (understeer, oversteer, drifting)
- Rear traction loss system - Dedicated front yaw pivot delivers accurate oversteer, understeer, and drift feedback that is physically distinct from normal cornering
- 20° range of motion at 50 cm/s (86°/s)
- 750W peak power with 25 N/m torque
- GT and F1 positions - Reverse the main rail for F1 seating pose
- SimRacingStudio license included - 145+ supported titles including iRacing, Assetto Corsa, Gran Turismo 7, F1 22-25, Forza, Le Mans Ultimate
- PC, console (select games), and VR compatible
- Upgradeable to 6-Axis H6 - Modular design allows upgrade without replacing the entire platform
- 330 lbs / 150 kg pilot weight capacity
In The Box
- Rigid metal rig (normal and F1 pose)
- Mounts for wheel, pedals, and shifter
- Mounts for seat or sliding rails
- Integrated power drive motors (pre-installed)
- 100-240V control unit with USB
- SimRacingStudio license
- Quick assembly tools
- 1-year full warranty
Please note: seat, VR headset, and controllers (wheel, pedals, etc.) are sold separately.
Specifications
| Degrees of Freedom | 3 DOF (Pitch + Roll + Yaw/Rear Traction) |
| Full Platform Motion | Yes (entire rig moves) |
| Range of Motion | 20° |
| Speed | 50 cm/s (86°/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse / 0.5G longitudinal |
| Power Consumption | 750 Watt (peak) |
| Pilot Weight Capacity | 330 lbs / 150 kg |
| Footprint | 3×5 ft, 2 ft H (100×150 cm, 60 cm H) |
| Box Weight | 2 boxes: 78 lb (37×15×11 in) + 97 lb (32×24×10 in) |
| Material | Commercial grade metal profiles |
| Compatible Software | SimRacingStudio (included); 145+ racing, rally, and other titles |
| Connectivity | USB to PC |
| Warranty | 1 year full warranty |
| Shipping Origin | Warsaw, Poland |
| Estimated US Delivery | 3-4 weeks from order |
| Upgradeable To | H6 (6-Axis HERO) |
