DOF Reality 2-Axis Hero (H2) - flight/universal

All DOF Reality products incur US import tariffs which customers must pay directly to US Customs. Expected tariffs range from 10-20% of the sale price, though rates fluctuate and cannot be guaranteed due to changing tariff policies. We apologize for this uncertainty which is beyond our control.

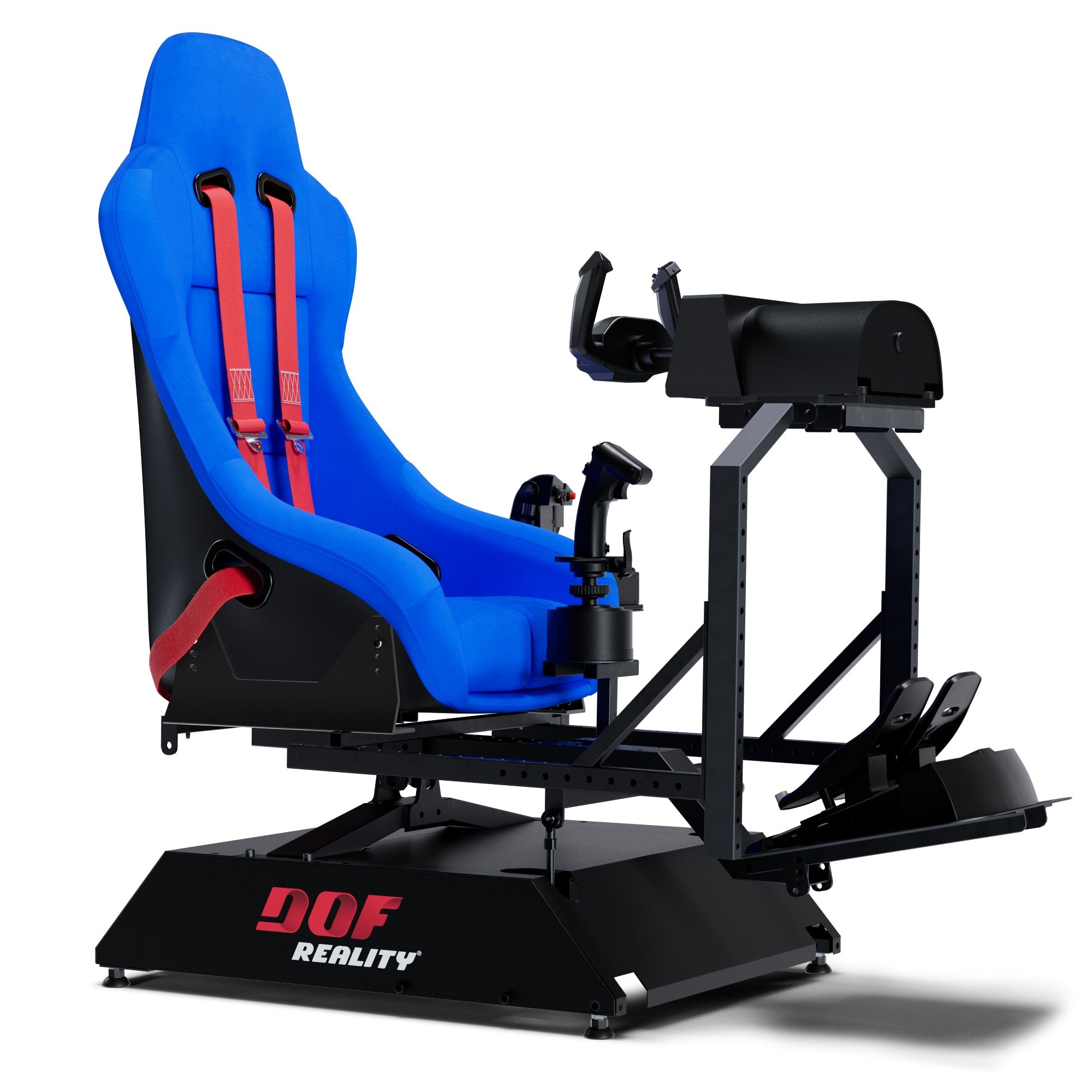

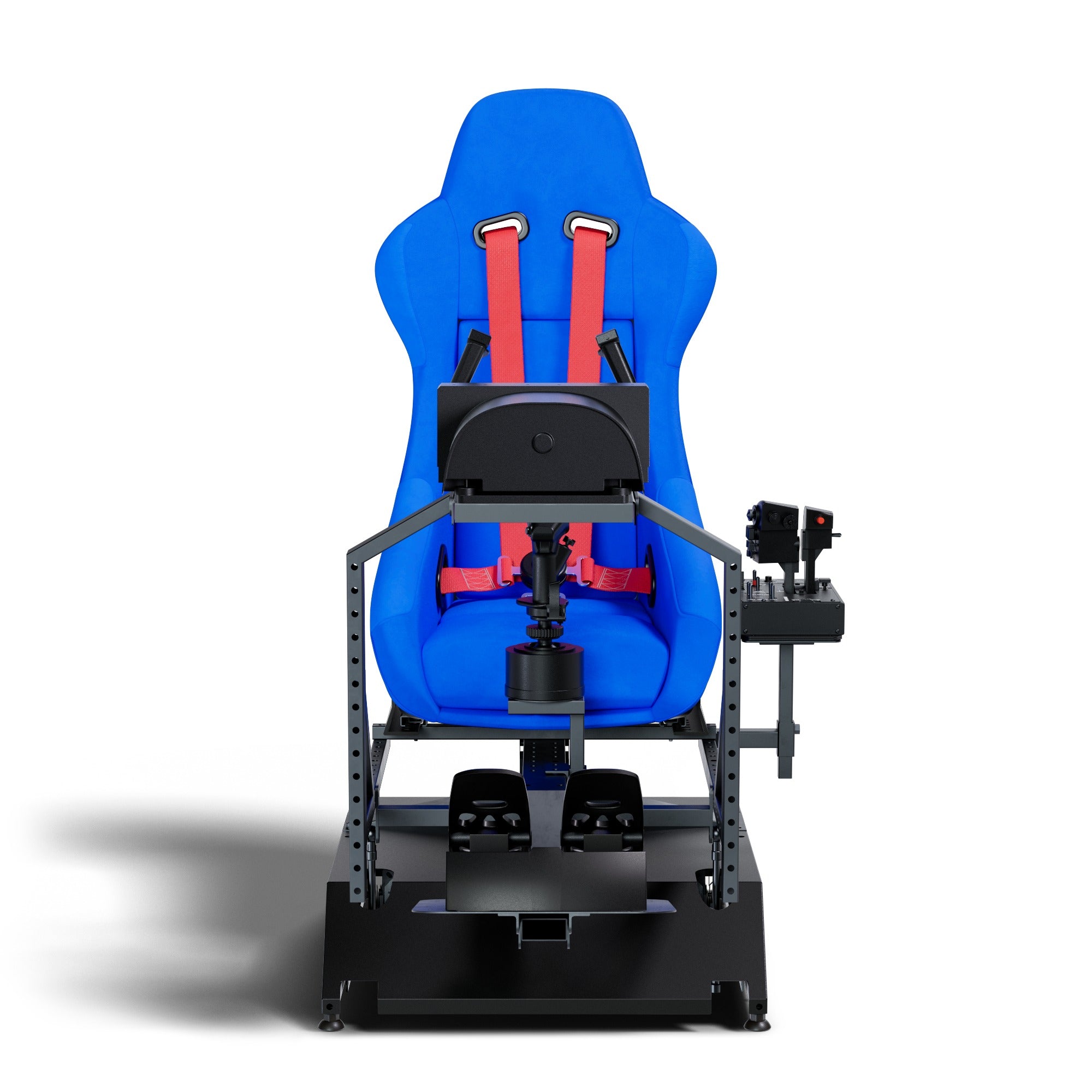

The H2 flight/universal model is a full-motion simulator platform with two axes of movement - pitch and roll - that moves your entire cockpit as one unit: yoke, joystick, pedals, throttle, and monitor all shift with the seat. This is the defining feature of the HERO series, and it allows the platform to simulate g-forces through physical muscle pressure rather than visual effects alone.

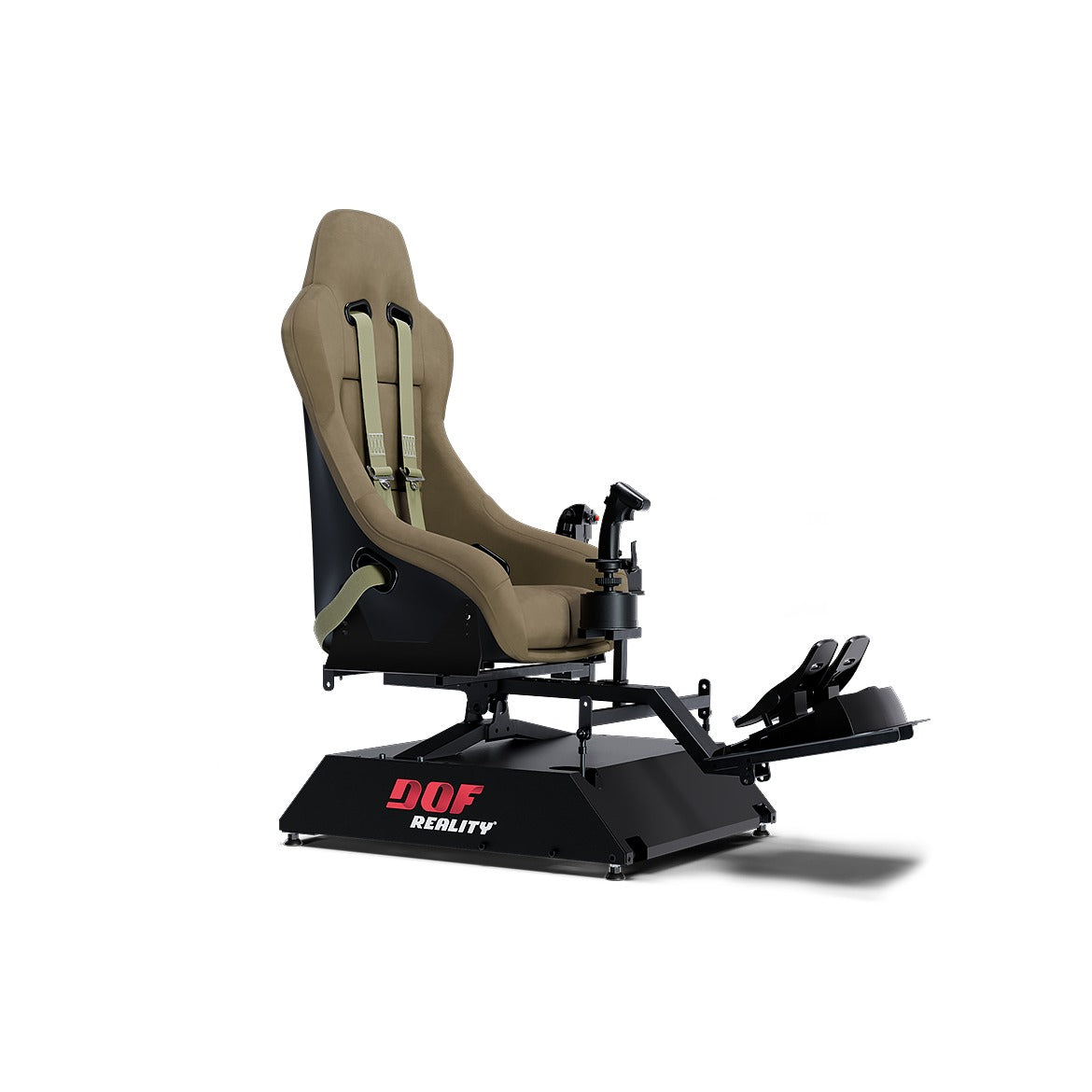

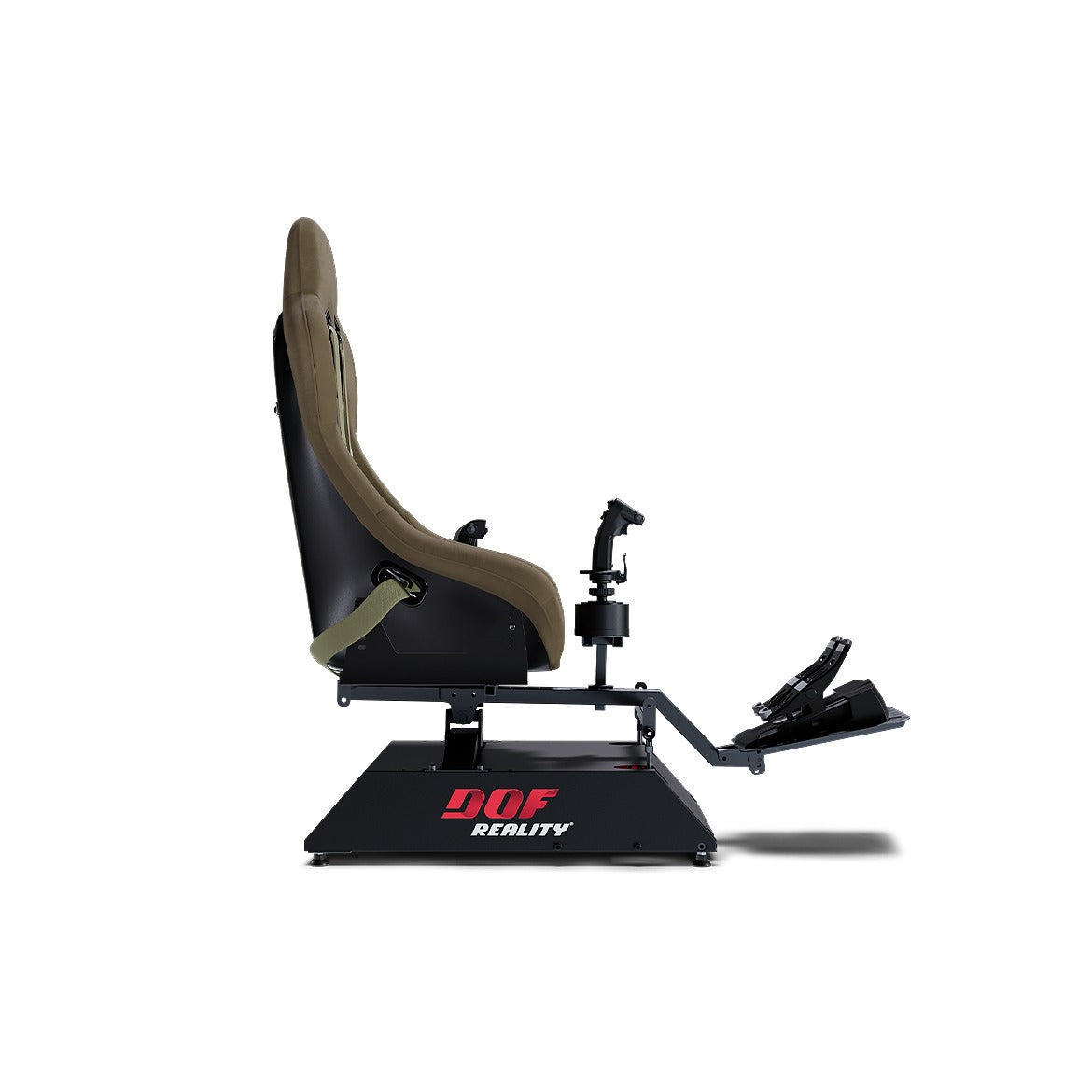

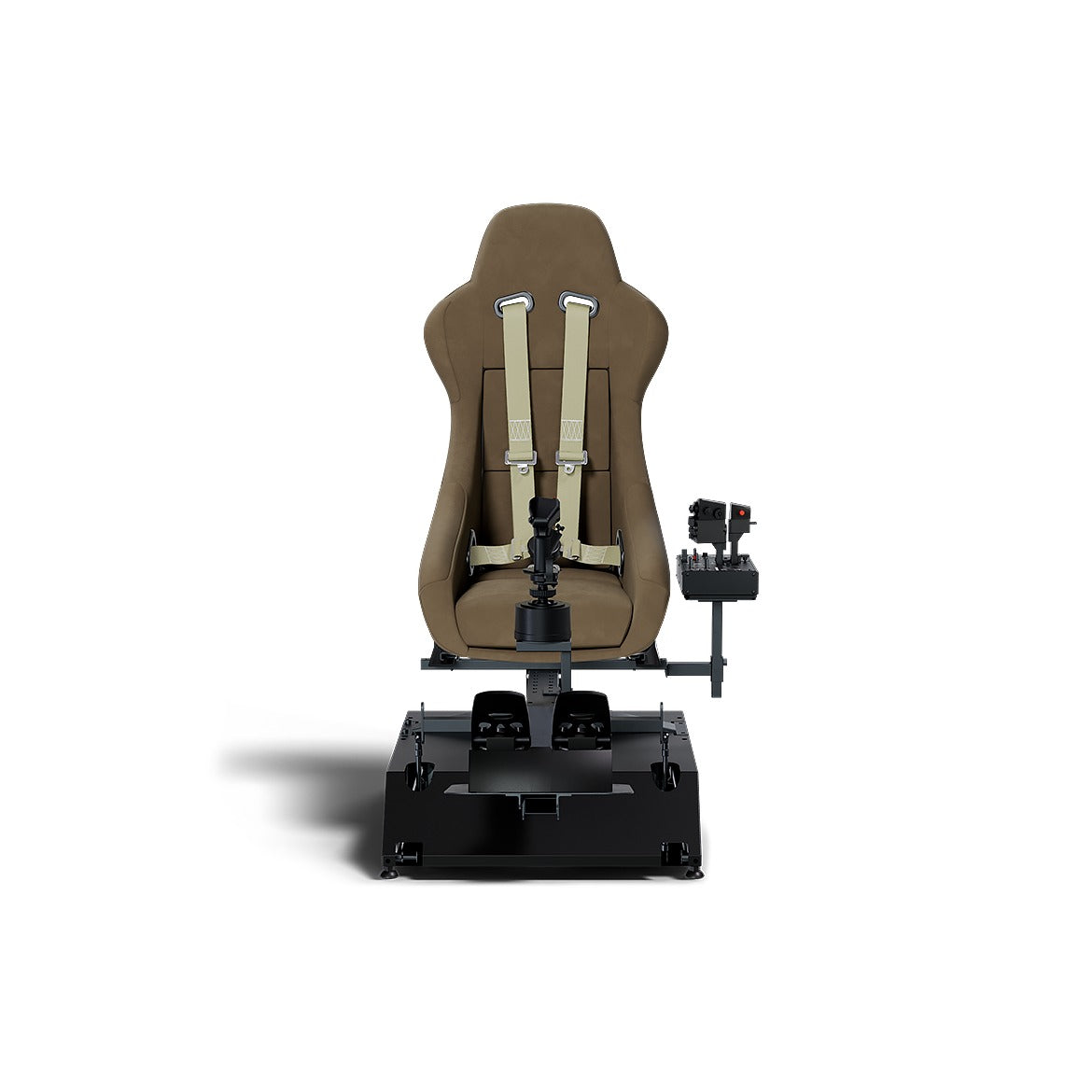

Compared to the racing version of the H2, this model adds an extra gearbox on each motor. Those gearboxes are specifically designed to produce the slower, smoother movements that fixed-wing and helicopter flight requires - eliminating the jerkiness that would otherwise occur at low motion speeds. The same platform also runs helicopter and racing simulations without any compromise.

The platform uses an SFU (ball screw) drive mechanism and commercial-grade steel construction. It supports up to 330 lbs (150 kg), has a 20-degree motion range, delivers 25 Nm of torque, and moves at 50 cm/s (86 deg/s). It ships fully assembled and tested, then disassembled into two boxes - each 64 lbs - for transport, and reassembles with included tools.

Motion is controlled by SimRacingStudio software, which reads live telemetry to simulate runway texture, turbulence, buffeting, vibrations, and attitude changes through climb and descent. Supported titles include Microsoft Flight Simulator 2024, DCS World, and X-Plane 12. VR headsets are supported with motion compensation.

DOF Reality has been producing motion platforms since 2014. The H2 is built to be upgradable - additional axes can be added later. A 1-year manufacturing warranty and 24/7 support are included.

Compatible across all major platforms and dozens of racing and flight games.

H2 Hero ships from Poland. Delivery to the US takes approximately 3-4 weeks. The platform is fully assembled and tested, then disassembled for transport. The platform ships in two boxes with all reassembly tools and hardware included.

Features

• Full cockpit motion - Seat, HOTAS/yoke, throttle, and all controls move together as one unit
• 2 degrees of freedom - Pitch (nose up/down, climb/descent attitude) and Roll (bank angle, turning)
• 20° range of motion at 50 cm/s (86°/s) - Tracks flight attitude changes with smooth, continuous motion
• HOTAS compatible - HOTAS Mounts Kit available separately to mount throttle and joystick (center or side)
• HoneyComb Alpha Bravo compatible - Adapter available separately for yoke and throttle
• VR compatible - Full VR support with motion compensation for MSFS, DCS, X-Plane
• SimRacingStudio license included - Connects to flight sim telemetry in real time
• 27+ supported flight titles - Microsoft Flight Simulator 2024, DCS, X-Plane 12, IL-2 Sturmovik, War Thunder, Elite Dangerous, and more
• Upgradeable to H3r, H6r - Add yaw/traction and 6-axis heave as your setup grows
• 440 lbs / 200 kg pilot weight capacity

In The Box

• Rigid metal rig (normal and F1 pose)
• Mounts for seat or sliding rails
• Integrated power drive motors (pre-installed)
• 100-240V control unit with USB
• SimRacingStudio license
• Quick assembly tools
• 1-year full warranty

Please note: seat, VR headset, and flight controls (HOTAS, yoke, pedals) are sold separately. HOTAS mounts kit and HoneyComb adapter are available as add-ons.
