DOF Reality 2-Axis Hero (H2) - racing

All DOF Reality products incur US import tariffs which customers must pay directly to US Customs. Expected tariffs range from 10-20% of the sale price, though rates fluctuate and cannot be guaranteed due to changing tariff policies. We apologize for this uncertainty which is beyond our control.

Discover the full potential of our racing rig.

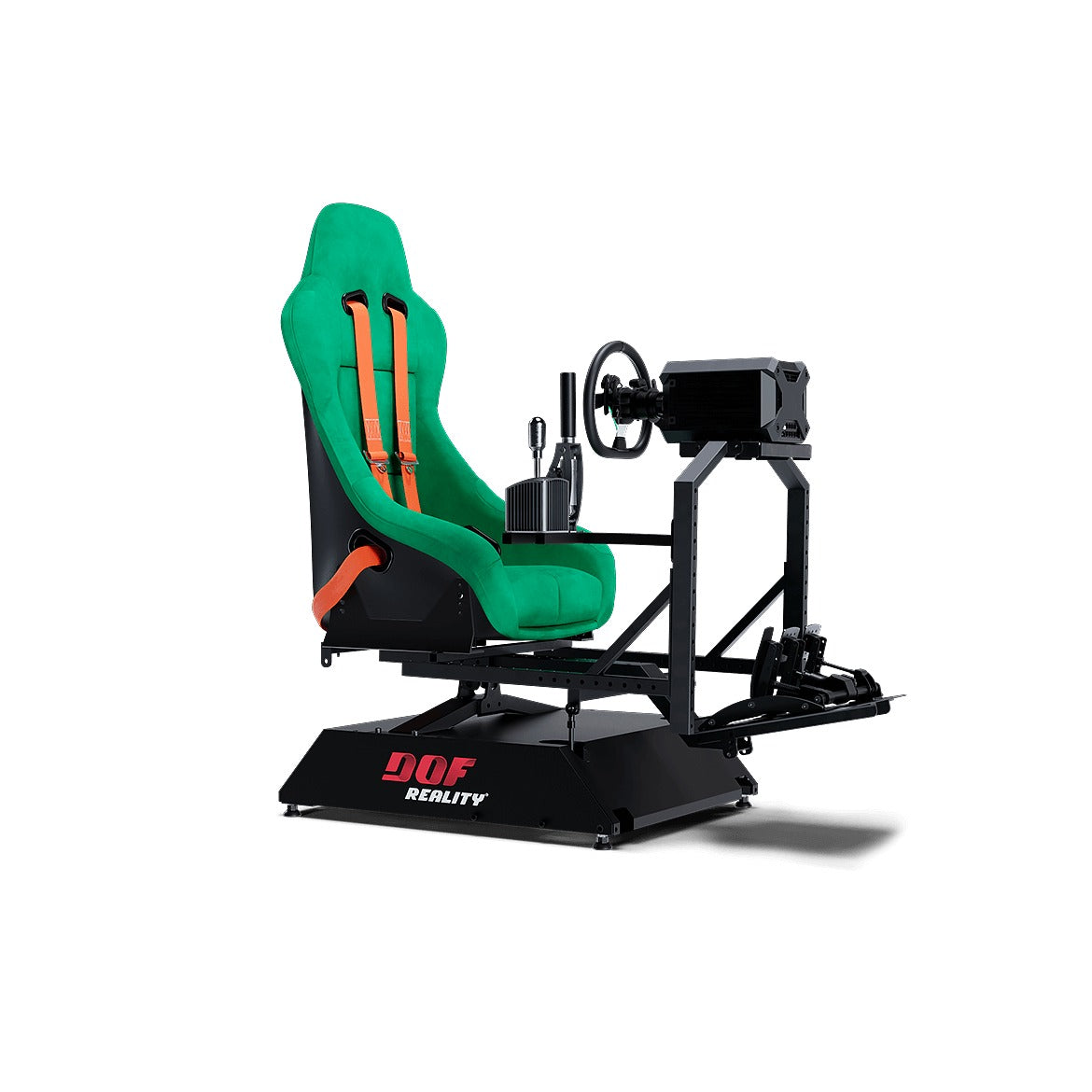

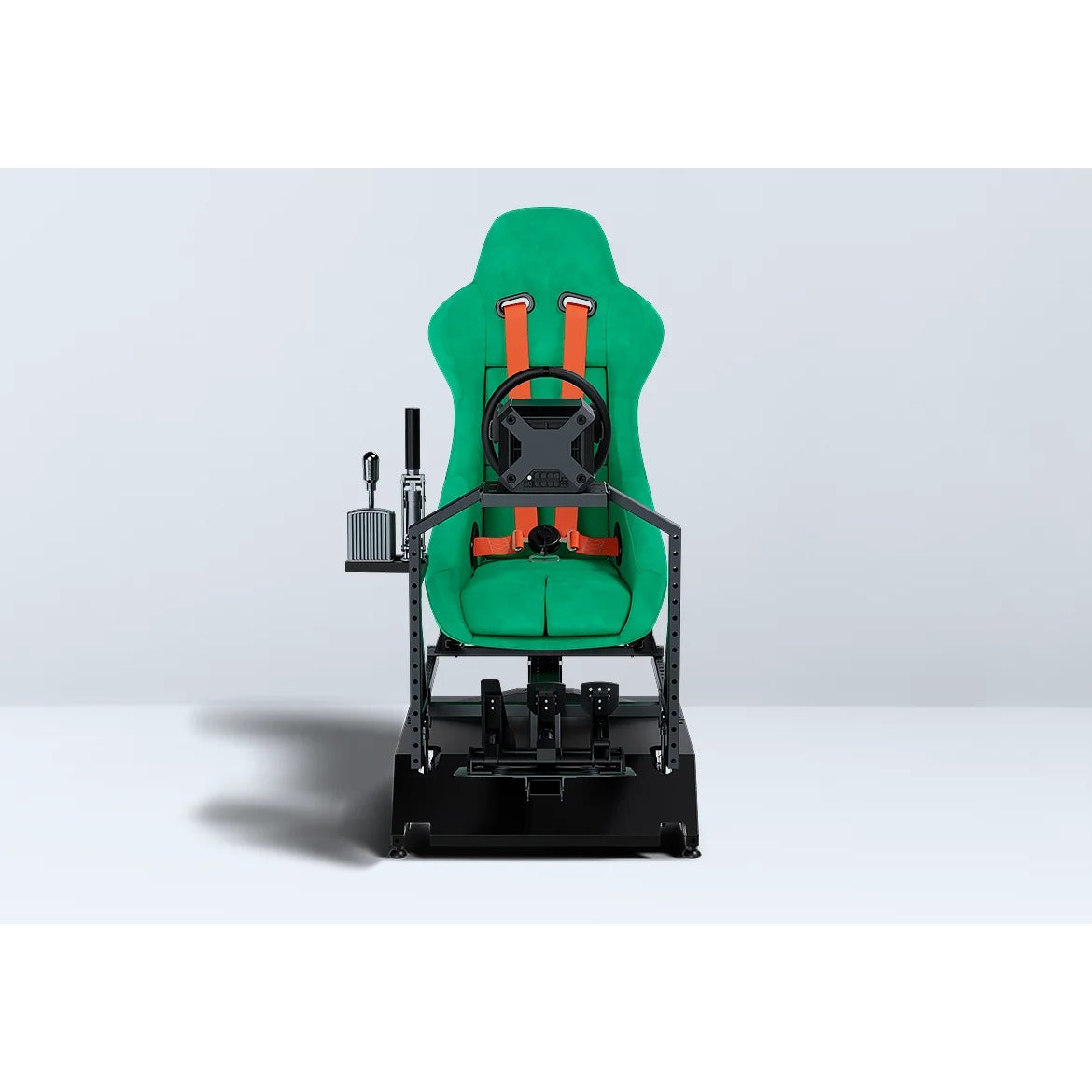

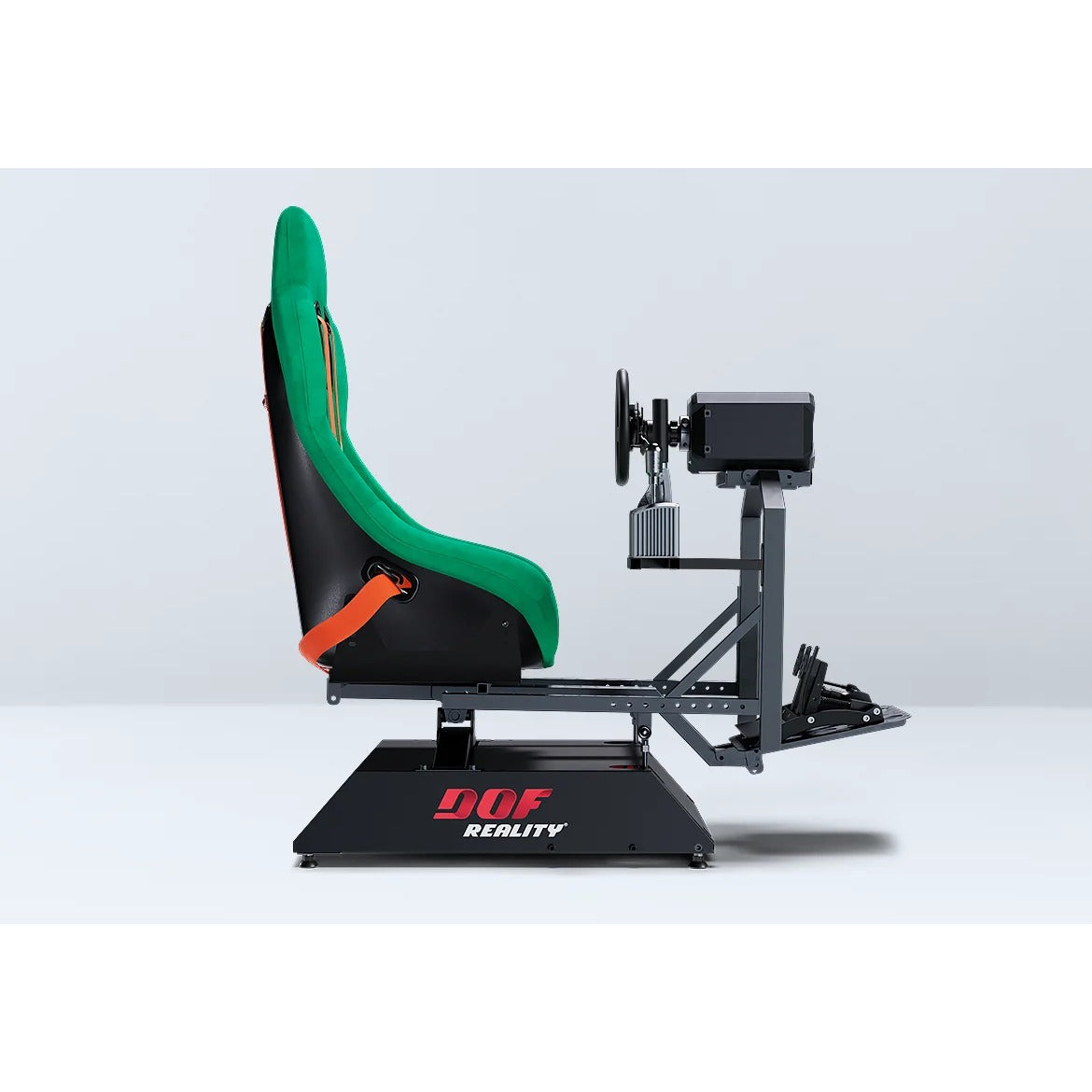

The H2 is a full-motion racing simulator platform with two axes of movement - pitch and roll - that moves your entire cockpit: seat, steering wheel, pedals, joystick, and monitor all shift together as you drive. This is the key distinction of the HERO series: where entry-level platforms move only the seat, the H2 moves everything, allowing it to simulate g-forces through actual muscle pressure points rather than just visual cues.

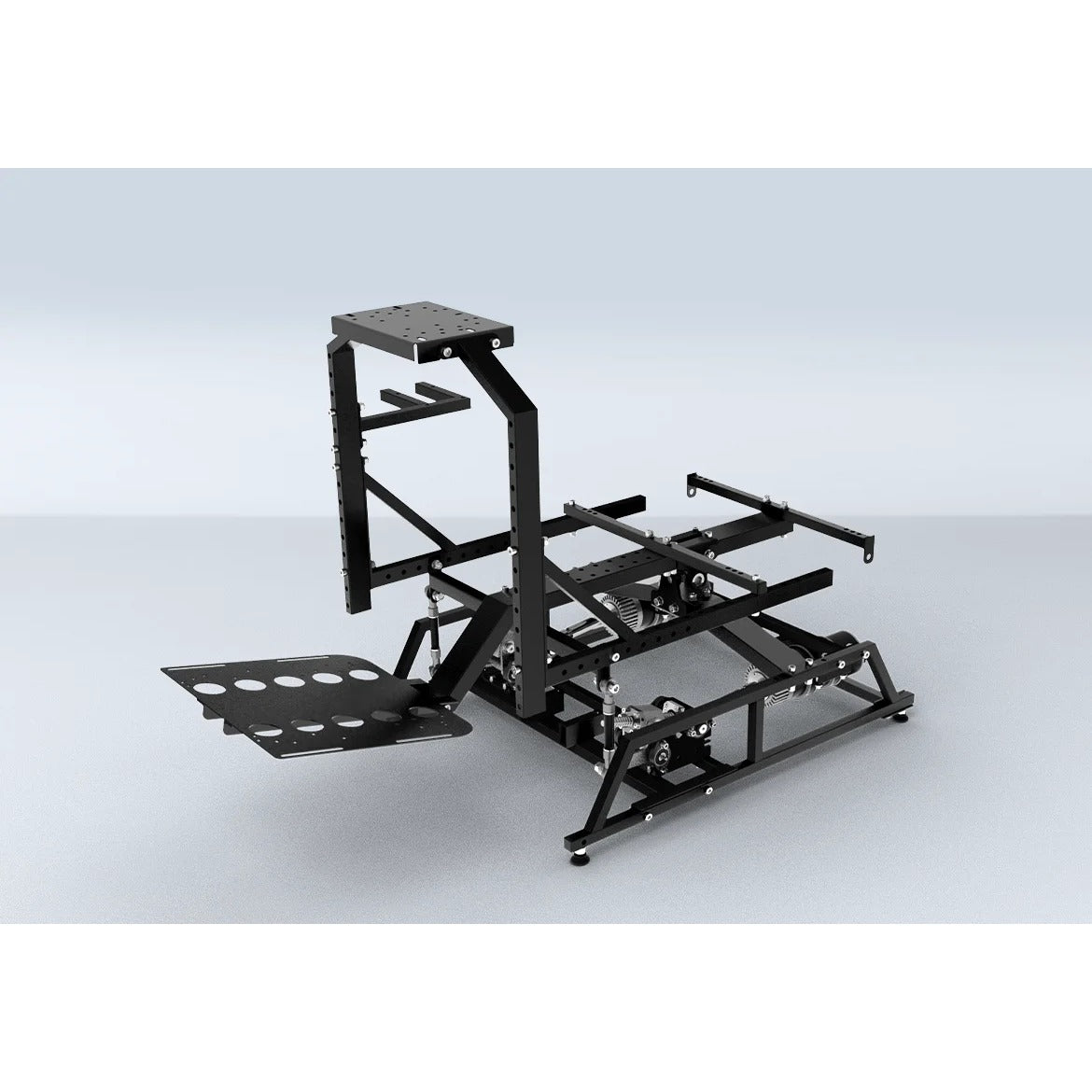

The platform uses an SFU (ball screw) drive mechanism and is built from commercial-grade steel profiles. It supports a maximum load of 330 lbs (150 kg), has a 20-degree motion range, delivers 25 Nm of torque, and moves at 50 cm/s (86 deg/s). The whole system ships in two boxes - each 64 lbs - and assembles with included tools.

Motion is driven by SimRacingStudio software, which reads live telemetry from your game to simulate road texture, bumps, vibrations, gear changes, braking forces, cornering loads, and collisions. Over 60 racing titles are supported natively, including iRacing, Assetto Corsa, Dirt Rally 2.0, and EA Sports WRC. It also works with VR headsets and PS/Xbox consoles via an optional adapter.

DOF Reality has been building motion platforms since 2014. The H2 is designed to be upgradable, so adding axes later is possible without replacing the whole rig. A 1-year manufacturing warranty and 24/7 support are included.

Compatible across all major platforms and dozens of racing and flight games.

H2 Hero ships from Poland. Delivery to the US takes approximately 3-4 weeks. The platform is fully assembled and tested, then disassembled for transport. The platform ships in two boxes with all reassembly tools and hardware included.

Features

• Full cockpit motion - Seat, wheel, pedals, shifter, and monitor all move together as a single unit, simulating g-forces through muscle pressure points

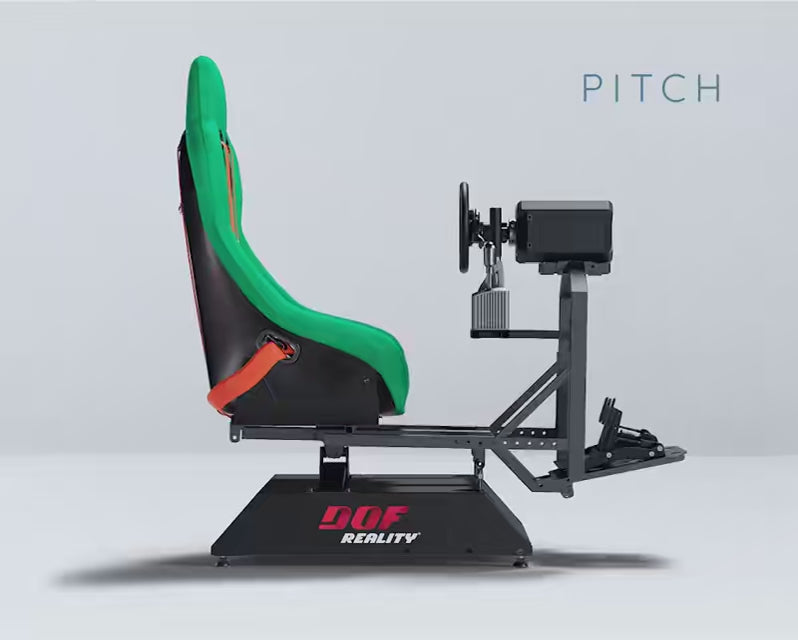

• 2 degrees of freedom - Pitch (forward/backward: braking and acceleration) and Roll (side to side: cornering forces)
• 20° range of motion at 50 cm/s (86°/s) - Responsive enough to track fast sim events accurately
• 25 N/m torque, 0.7G transverse acceleration
• GT and F1 positions - Reverse the main rail to switch between GT and F1 seating pose
• SimRacingStudio license included - Live telemetry from 145+ games including iRacing, Assetto Corsa, Gran Turismo 7, F1 22-25, Forza, Project CARS, BeamNG.drive
• Compatible with PC, PlayStation (select games), Xbox (select games), and VR
• Commercial grade steel frame - Rigid metal profiles built for long-term durability
• Upgradeable to H3, H6 - Add axes as your setup evolves without replacing the entire platform
• 330 lbs / 150 kg pilot weight capacity

In The Box

• Rigid metal rig (normal and F1 pose)
• Mounts for wheel, pedals, and shifter
• Mounts for seat or sliding rails
• Integrated power drive motors (pre-installed)
• 100-240V control unit with USB
• SimRacingStudio license
• Quick assembly tools
• 1-year full warranty

Please note: seat, VR headset, and controllers (wheel, pedals, etc.) are sold separately. All are supported by the H2 platform.

Specifications

Manuals
